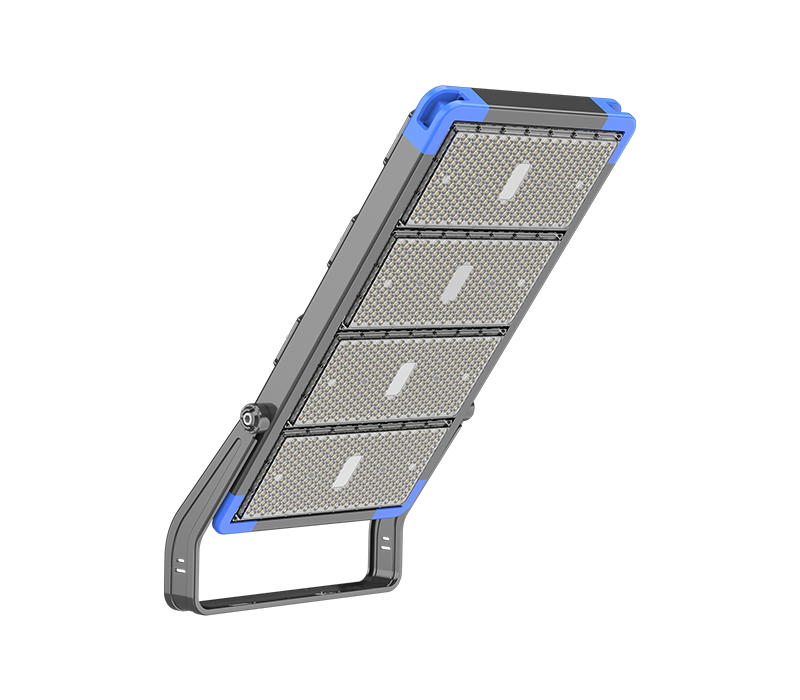

SkyWing III Sport & High Mast Light High Power LED Sports Filed Light
SkyWing III Sport & High Mast Light High Power LED Sports Filed Light
Light Source: CREE/Lumileds/Bridgelux/Osram/Samsung/Epistar
LED Driver: Meanwell/Philips/MOSO/Sosen/Lifud/Inventronics
Power range: 250W/500W/750W/1000W/1250W
Voltage: AC120-277V/AC200-480V
Size: L462xW222xH111mm(MIN),L502xW1072xH307mm(MAX)
Weight: 8.5KG/15.5KG/21.5KG/27.5KG/33.5KG
CCT: 3000K/4000K/5000K/6000K
Optical : Beam angle 10°/25°/45°/60°/90°/130*30*60°/65*25*60°
Efficacy: 140lm/W standard, 150lm/W optional
CRI: Ra>80
IP Rating: IP66
IK Rating: IK08, IK10 Available
Installation: With U type installation bracket
Temperature: -30℃ to +50℃
Warranty: 5Years
Smart control: Photo sensor, motion sensor, Emergency battery
The SkyWing III Series (250W/500W/750W/1000W/1250W) LED flood lights from YIBAI LED LIGHTING are designed to offer superior lumen-per-dollar system performance while delivering substantial energy savings and significantly reduced maintenance, particularly for hard-to-reach installation locations.
- The SkyWing III series floodlighting systems provide a sustainable lighting solution for sports fields, airport aprons, railway terminals, car lots, and other open area, high mast lighting applications.
- With lumen packages ranging from 33142 to 167500 nominal lumens at less than 75 percent in energy and maintenance savings over traditional HID systems.
- The completely sealed LED light modules utilize CREE/Lumileds/Bridgelux/Osram/Samsung/Epistar high brightness LED technology and precision control TIR type optics to deliver superior uniformity and excellent illumination to the targeted application. The advanced LED reflective optical system is available in multiple NEMA distributions with high aiming efficiency for maximum illumination within the required area and minimal light spill.
- The electrical system of SkyWing III consists of high temperature, flame-resistant Mean Well constant current drivers with high system power factor, low THD, integrated circuit protection, and universal voltage power supply 100-277VAC.
- SkyWing III's modular design and rugged construction guarantee long-term reliability and application flexibility.
- The lighting systems are compatible with optional integrated sensor for occupancy and dimming.
- IP66-rated, TGIC paint coated die cast aluminum housing with integral heat sink provides outstanding thermal management and weather tight operation, ensuring the sustained delivery of optimized performance and superior lumen maintenance across a wide temperature spectrum and weather conditions.
Specifications:
Model No. | YB-ISL-QCD-C250W | YB-ISL-QCD-C500W | YB-ISL-QCD-C750W | YB-ISL-QCD-C1000W | YB-ISL-QCD-C1250W |
Rated Power | 250W | 500W | 750W | 1000W | 1250W |
Input Voltage | AC120-277V/AC200-480V | ||||
LED Chip | CREE/Lumileds/Bridgelux/Osram/Samsung/Epistar | ||||
LED Driver | Meanwell/Philips/MOSO/Sosen/Lifud/Inventronics | ||||
Material | ADC12 Aluminum +Lens | ||||
CRI | Ra>80 | ||||
Power Factor | PF>0.95 | ||||
CCT | 2800-6500K | ||||
Light Efficacy | 130lm/W standard, 150lm/W optional | ||||
IP Rating | IP66 | ||||
IK Rating | IK08, IK10 Available | ||||
Operation Temperature | -35°C- +50°C | ||||
Beam Angle | 10°/25°/45°/60°/90°/130*30*60°/65*25*60° | ||||
Warranty | 5years | ||||
Lifespan | 60,000Hrs | ||||
Dimension | L462xW222xH111mm | L462xW399xH111mm | L462xW584xH111 | L462xW761xH111mm | L502xW1072xH307mm |
Packing | 550*400*190mm | 630*545*190mm | 680*550*240mm | 860*550*240mm | 1040*550*240mm |
Weight | N.W: 8.5KG / G.W: 9.5KG | N.W: 15.5KG / G.W: 17KG | N.W: 21.5KG / G.W: 22.5KG | N.W: 27.5KG / G.W: 28.9KG | N.W: 33.5KG / G.W: 35KG |
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS |
