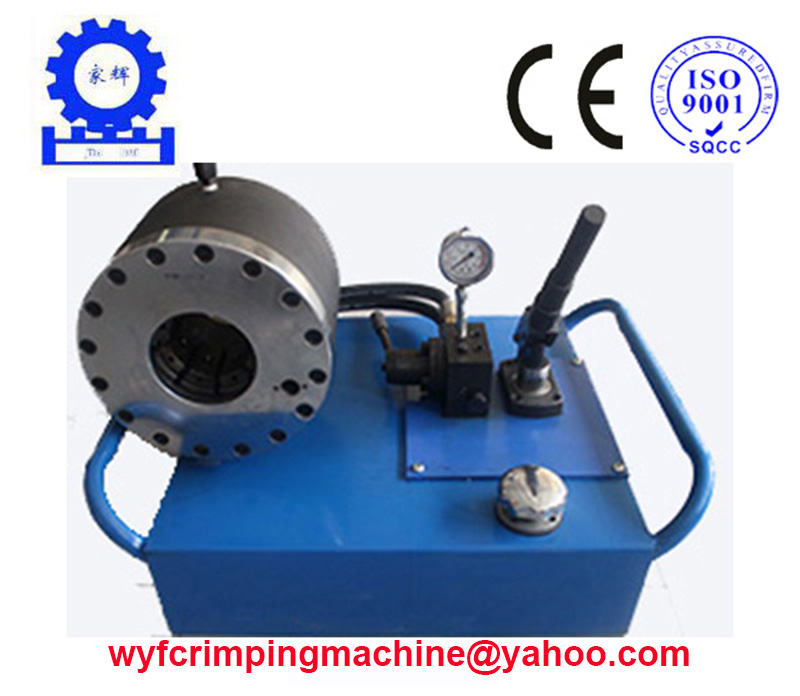

YJK-32S Hydraulic Hose Crimping Machine

Quantité : 1 set   Prix : USD $1850

Product Description
YJK-32S is designed for outdoor service when operation must be conducted on site. It is used to crimp a small number of hoses in the workshop or on the van. It can be easily carried to the construction site by hand. The machine is characterized by small size, light weight, compact structure, simple operation, high crimping precision, fast speed and high production efficiency. It has been approved by CE and ISO 9001.

Technical Data
Crimping Inner Diameter Range 6-32 mm
Crimping Outer Diameter Range 14-80 mm
Handpiece Max. Opening 80 mm
Crimping Force 230 T
System Pressure (Oil Pump Rated Pressure) 31.5 MPa
Die Specifications φ6, φ8, φ10, φ13, φ16, φ19, φ25, φ32
Power Supply
Electromotor Power
Weight 135 kg
Control Mode Manual
Dimension (L*W*H) 500*300*400 mm


Die specifications
Model Φ6 Φ8 Φ10 Φ13 Φ16 Φ19 Φ25 Φ32
Crimping range (mm) 15-25 18-28 20-30 23-33 26-36 29-39 37-47 46-56
Die length (mm) 65 65 65 65 65 65 65 65
