Camless Spring Former

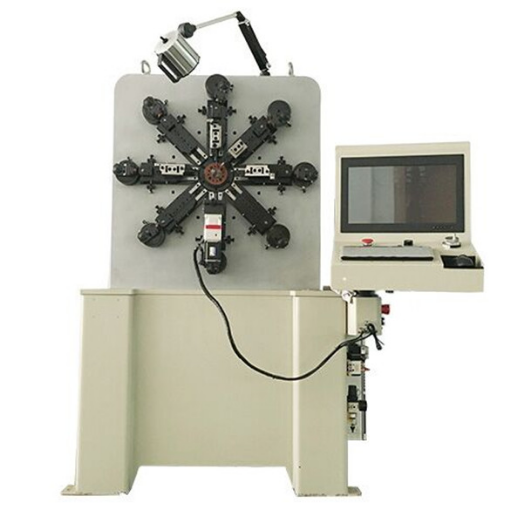

XD -1120 Eleven axis camless CNC Spring Forming Machine for forming wireIntroduction: Special camless design equipped with free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former. Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.Intuitive graphics user interface.Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.Commonly use in the industries of: automobile, wire forms, entertainment and fitness.1.Axis count: 11 axis2.Wire size: ￠0.30~2.5mm3.Max outside diameter: ￠40mm4.Wire feed motor: 2.7kw5.Sliding arm motor*8: 0.75kw6.Quill motor: 0.75kw7.Spinner motor: 0.4kw8.Computer display: Chinese/English9.Max wire feed: 99999.99mm10.Min wire feed: 0.02mm11.Computer memory: 500 programs12.Dimensions: 1450*550*1650mm13.Weight: 850kg14.Power ac: 3-phase 220v 50hz url: http://www.springmachinechina.com
