X-Ray Scanner

Brief

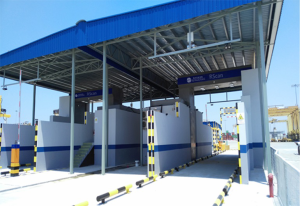

CFD61-405 Container/Vehicle Inspection System is new and multi-functional security inspection scanner with high quality developed and designed independently and manufactured by Shanghai Rays Co. since 2010. Especially its accelerators, detector systems, image algorithms up to the world leading level. We have complete independent intellectual property rights. The system is specialized in the inspection of containers, trucks, vans and other vehicles. Particularly applied to the safety inspection of freight yard, border, port and special places. The function of software is powerful and clear imaging technology to help the inspectors to quickly discover all kinds of prohibited items hidden in containers or vehicles when the vehicle normally passes, not opening.

2. System Predominance

117. Multi row array detectors with high detection speed, high image quality and resistance to harsh environment;
117. Dual energy imaging material recognition technology can be distinguished organic and inorganic with different colors;
117. Using high speed data acquisition of ultra large scale integrated circuit, optical fiber as transmission medium, and the powerful image processing and data transfer capabilities, which can effectively improve the accuracy of inspection and system reliability;
117. Automatic driver avoidance technology, which can achieve fast drive-through inspection without the driver leaving the truck;
117. Optional free combination features: license plate recognition, container RFID tag identification, radioactive material detection, etc.;
117. To achieve full network of data transmission and storage platform to ensure the efficiency of the pass detection;
117. Simple interface of system data and function service, fit easily with other services for data exchange, system integration and docking.

3. System Technical Principles

The main distribution

Accelerator subsystem, scanning device subsystem and Digital imaging system are located in the scanning imaging area.

System control subsystem is located mainly in the main control room; part of the attachment is located in the test area.

Workstation subsystem is located in the main control room and checkpoints.

Between the various subsystems through the cable and light to achieve interconnection，all packages log and image data are uploaded to the workstation subsystem and image server.
