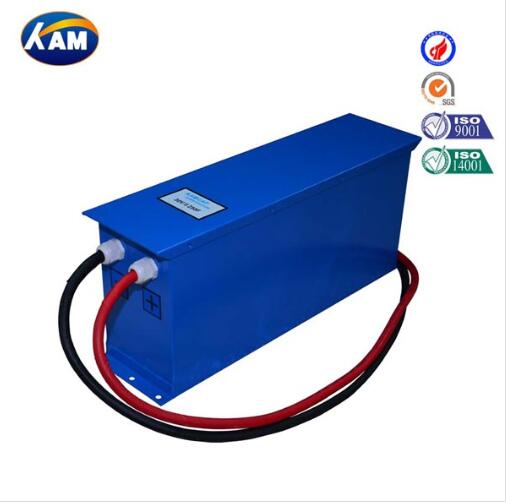

MK Module Series

Power terminal voltage

Rated voltage

V R

Surge voltage

Capacity range

Operating temperature range

Product life

3.3~5V

5.4V

5.4V

10~200F

-40 ~ +65°C

-40 ~ +70°C

-40 ~ +85°C

Normal temperature cycle life: 25℃，1 million cycles between VR and 1/2VR，Capacity attenuation ≤ 30%, ESR ≤ 3 times.

High temperature endurance life：70℃，maintainVR,1000 hours.

Capacity attenuation ≤ 30%, ESR ≤ 3 times.

6~7.5V

8V

8.1V

6 ~ 133F

9V

10V

10.8V

0.5~117F

12V

12.5V

12.5

4-80F

13.5V

13.5V

4-80F

15V

15V

3~500F

16V

16.2

3~500F

24V

27V

27

2 ~ 300F

30V

32

1~250F

48V

48V

48.6

1~165F

50V

54

1~150F

60V

64

1~125F

100V

100V

105

1 ~ 75F

120V

125V

130

1~62F

Series

Application range

Instance

SP, LR, HP, HT

Backup power

RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.

SE, HP, HE

Energy storage

Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment

SE Coin type, HE

Energy storage

Flashlights, water meters, gas meters, taillights, small appliances, etc.

HP、LR

High power support

Wind power, locomotive start, ignition, electric vehicles, etc.

MK

Backup power

High current operation

Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system
