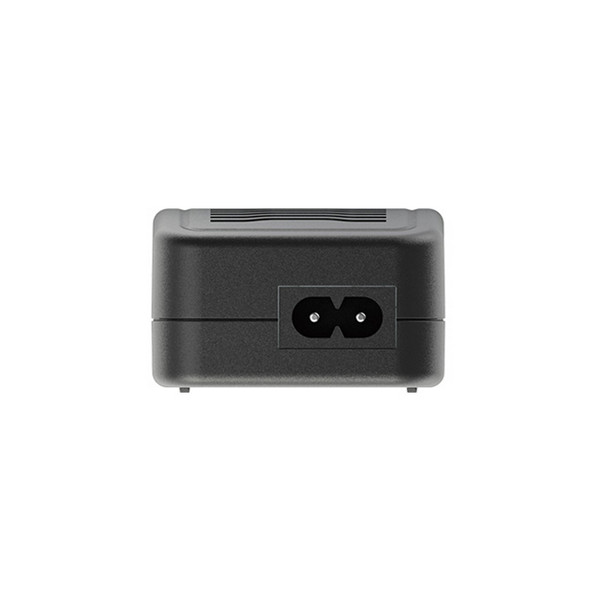

Drone Charger E3 |
||||||||||||||||||||||||||||||||||||||||||||
|
LED Indicator |
Charger Status |
|
|
LED stays green and flashes red |
The charger is ready to charge |
|
|
LED glows constant red |
The charger is charging |
|
|
LED glows constant green |
The charging process finishes |
|
|
Error Message |
||
|
All LEDs flashes red once and stop 1 second in cycle |
The battery connects incorrectly |
|
|
All LEDs flashes red twice and stop 1 second in cycle |
The charger encounters overload or short circuit |
|
|
All LEDs flashes red four times and stop 1 second in cycle |
The voltage of single cell is too high or too low |
|
|
All LEDs flashes red six times and stop 1 second in cycle |
There is a 300mv difference of voltage between battery pack |
|
Note: It's also worth noting that there are some considerably cheaper chargers around like the Imax B3 chargers, but I would suggest you avoid these as they have a history having problems (possibly due to many fake chargers on the market) and are not very accurate in terms of voltage monitoring and cell balancing which will ultimately result in your battery degrading faster.
|
AC Input |
100-240VAC, 50-60Hz |
|
Battery Type |
LiPo |
|
Cell Count |
2-3 cells |
|
Charge Current |
1.2A Max |
|
Cell Terminate Voltage |
4.2V±0.02V |
|
Circuit Power |
11W±10% |
|
Dimension |
88*57*35 mm |
|
Weight |
103 g |
Included Components: E3*1, AC Power Cord*1, Instruction Manual*1
