UV Test Chamber

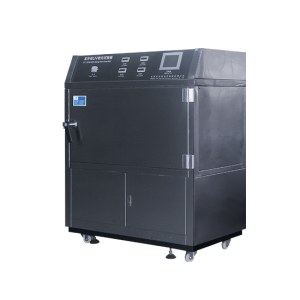

UV test chamber Model: YUV-080

UV Test Chamber Performance

  1. UV-A or UV-B lamp, 8 pcs
  2. Spectral stability, lamp life 5,000 hours
  3. Good simulation of ultraviolet light in sunlight
  4. Simulates condensation that is consistent with natural wet conditions

Description of UV Test Chamber, UV Aging Chamber

UV test chamber (also called uv aging test chamber or uv weathering chamber ) can simulate environmental conditions such as ultraviolet, rain, high temperature, high humidity, condensation and darkness in natural climate. By recreating these conditions, they are combined into one cycle, and it is automatically executed to complete multiple cycles.

The uv light test chamber is suitable for accelerated weathering tests of paint, ink, chemical, rubber, paint, adhesive, etc. Contact us and get uv test chamber price!

Parameter of UV Test Chamber

Model

YUV-080

Inner chamber sizeW×H×D(cm)

40×50×40

Exterior chamber sizeW×H×D(cm)

Depends on the chamber design

Performance

Temp.range

R.T.+10℃～70℃

Humi.range

75% RH～95%RH

Rain time

1～9999mins,adjustable

Rain period

1～240mins, interval adjustable

Light model

UV-A（295~360nm), UV-B(280~315nm) optional

UVA/UVB light power

40W(lifetime 1800h)

Irradiance

1.0W/m2 adjustable

Standard specimen size

75x150mm or 75x300mm

Control accuracy

±0.1℃, ±1%RH

System

Temp.controller

Imported LED digital display PID+SSR microcomputer integrator

Sensor

Perkin resistance PT100Ω/MV

Time controller

Imported programmable time controller

Heating system

Nichrome heater

Condensation humidification system

Stainless steel humidifier

Blackboard temp.

Metal blackboard thermometer

Water supply system

Auto water filling system

Circulating system

Quiet motor,multi-vane centrifugal fan

Material

Exterior chamber material

Stainless steel

Inner chamber material

SUS#304 stainless steel

Sample holder material

SUS#304 stainless steel

Standard configuration

Standard sample holder 24pcs,light tubes 8pcs(UVA/UVB)

Safety Protection

Leakage, short circuit, over temp.,water shortage, over current protection

Power supply

AC 1Ψ220V 60/50Hz

Operation condition

5℃ ～＋30℃ ≤85％R.H

Customization service

Non-standard or special requirements are welcomed and available.

Features of UV temperature chamber

  1. The radiometer probe is fixed and does not require any loading and unloading.
  2. Illumination and condensation can be independently controlled and alternate cycle control.
  3. The independent control time for illumination and condensation and the time for alternate cycle control can be set arbitrarily within 1000 hours.
Localisation : No.5,3rd Street,Yinsha Road, Xiabian Community,Chang'an Town,Dongguan, 523876 Guangdong,
Personne à contacter : Tang Lucy, 0769 86245189/
