Outdoor AGV Tractor
|
Standard Models |

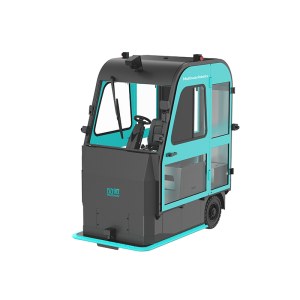

MW-OSP60 Outdoor AGV Tractor |
|
Navigation |
Laser+reflector navigation |
○ |
LiDAR SLAM navigation |
● |
|
Magnetic nails navigation |
○ |
|
Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail) |
○ |
|
Communication |
Wireless Wi-Fi |
● |
Optical communication |
○ |
|
5G |
○ |
|
Specifications |
Payload(kg) |
6000 |
Tow traction payload(N) |
1200 |
|
Dimensions LxWxH(mm) |
1980x1260x2260 |
|
Turning Radius(mm) |
3500 |
|
Ditch crossing capability(mm) |
≤30 |
|
Obstacle crossing capability(mm) |
≤10 |
|
Climbing capability(mm) |
≤3°(5%) |
|
Weight(kg) |
1000 |
|
Motion capability |
Motion |
Reach, back, turning |
Auto hanging |
○ |
|
Speed(Unloaded/Max loaded)(m/s) |
1.5 |
|
Accuracy(Bearing wheel center)(mm) |
±10 |
|
Endangle accuracy(°) |
±1 |
|
Stopping Accuracy(mm) |
±10 |
|
Safety&protection |
Manual/Auto |
● |
Offset protection, Abnormal positioning protection |
● |
|
Components malfuction, communication fault protection |
● |
|
Bottom front LiDAR anti-collision(1pcs) |
● |
|
3D obstacles avoidance(Top and front side 1pcs) |
● |
|
Bumper strip(Truck head) |
● |
|
Emergency button(At least 2pcs) |
● |
|
Sound(Speaker)alarm、Light alarm(3-color light) |
● |
|
Width light (Front 1pcs) |
● |
|
HMI (7 inches) |
● |
|
Monitoring camera |
○ |
|
3D visual offset |
○ |
|
Battery capability |
Automatic recharging |
○ |
Manual replacing and recharging (one truck one recharger) |
● |
|
Battery replacing(Standard) |
Side way replacing |
|
Automatic charging bar |
Customized |
|
Battery type(Standard) |
LiFePO4 |
|
Voltage(V) |
48 |
|
Standard capability(Ah) |
280Ah |
|
Operation time(h) |
13-14h |
|
Lifetime |
3000 times, 70% left |
|
Recharging station(Standard) |
48V40A |
The Technical Details Of MW-OSP60 Outdoor AGV Tractor
Environment adaption: Laser navigation, no need to set reflector, QR code or others that refit scenarios.
Intelligent running: Map building, path planning, auto recharging, self operating that meets various scenarios. Machine vision and comprehensive system enable Outdoor AGV Tractor, improving flexibility.
High accuracy, high efficiency: Primary positioning ±5mm, secondary positioning±2mm.
Max speed 3m/s, max payload 2000kg, max lifting height 11.5m. 7×24h full time running.
Intelligent, safe, easy to operate: Comprehensive self detection capability.
Safe sensors + dual control system protection, 360°anti-collision, Light&Sound alarm protects.
Sustainable iteration, remote upgrading, friendly HMI.
What are agv tugger trains navigation methods?
The laser environmental navigation technology is used in the domestic laser navigation outdoor towed AGV deployed in Shanghai Volkswagen and Anji Logistics Park. It is possible to perform reliable navigation in non-standard environments using measuring lasers and inertial navigation technology, which considerably expands the application of AGV Environment and allows for outdoor all-weather, high-frequency operation.
What kind of batteries mount towing agvs?
In industrial applications, an Automated Guided Vehicle (AGV) is a transport vehicle fitted with electromagnetic or optical autonomous guidance devices that can travel along a predetermined guide path while providing safety and numerous transfer functions. AGV tractor does not require a driver and is powered by a rechargeable battery.
The Applications of AGV Warehouse Tractor for Outdoor Logistic
Outdoors, due to the harsh environment, AGV technology and other factors, its application has not yet been promoted. At present, the main scenes of outdoor AGV tractors are used for the transportation of large quantities of goods inside and outside the workshop or between workshops, such as transportation from the automobile manufacturing warehouse to the assembly line, and luggage transportation at the airport, etc.
Multiway Robotics is a top agv companies, we provide logistics robots, agv warehouse, omnidirectional mobile robot and etc. Want to know more? Please contact us.
