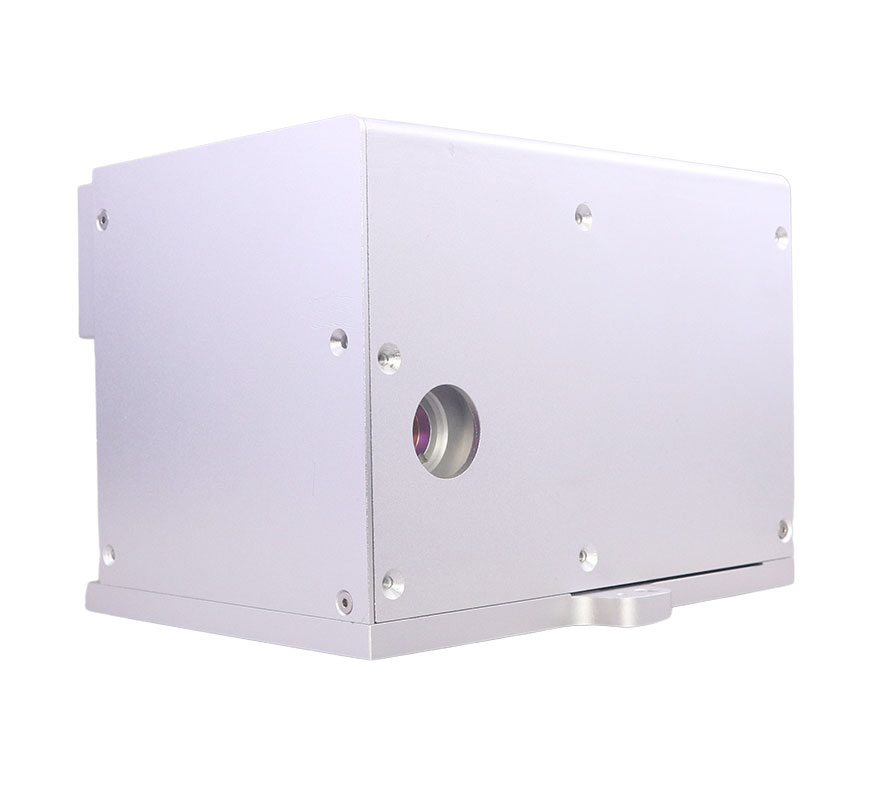

VCM Z

The traditional Z-axis focusing module adopts voice coil motor or galvanometer structure, which has high load quality, slow response time and low dynamic performance. VCM Z-axis focusing module breaks through the traditional perspective optical path design scheme and greatly improves the dynamic performance of the Z-axis focusing module. The highly innovative Z-axis structure design greatly reduces the following error, making the dynamic performance of Z-axis and XY galvo match perfectly, and ensures that the scanning speed of the 3D galvanometer is not restricted by the dynamic performance of Z-axis.

Key Features Of Vcm Z

Use only reflective elements, reducing thermal lensing in high power applications

No complex mechanical structure, ensure the stability of long time operation

Modular design, easy to assemble

Highly innovative Z-axis structure design significantly reduces following error and perfectly matches z-axis dynamic performance to XY axis.

Specifications Of Vcm Z

Hansscanner independently develops and produces a series of laser scanning heads (7mm, 10mm, 14mm, 20mm, 30mm, 50mm), voice coil motor and galvanometer system based on motion control technology, including 3D large area dynamic focusing system, high power galvanometer welding system, 5-axes drilling galvanometer, 4-axes platform linkage galvanometer, polygon scanning galvanometer, medical aesthetic fractional galvanometer, and weld tracking detection system.
