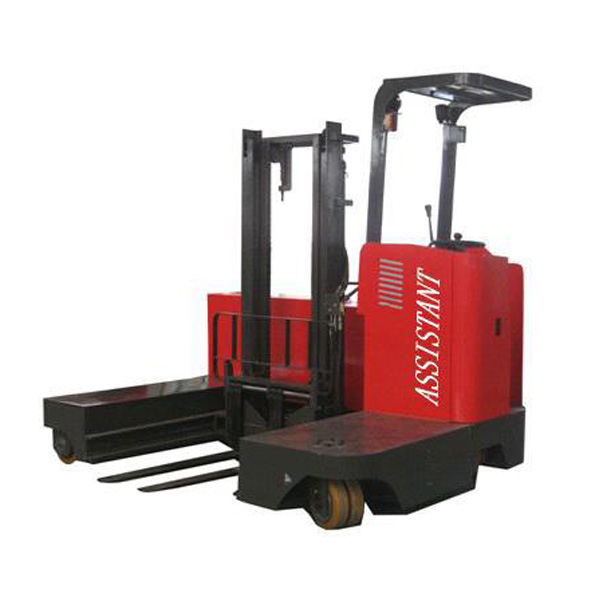

Narrow Aisle Lift Truck |
Model |
|
CQDH15C (double scissors) |
|
Drive type |
|
battery |
battery |
Load capacity/Rated load |
Q(kg) |
1000 |
1000 |
Load centre distance |
c(mm) |
500 |
500 |
Load distance, centre of drive axle fork |
x(mm) |
159 |
135 |
Tyre size, front |
mm |
280x82+160x60 |
280x82+160x60 |
Tyre size, rear |
mm |
125x82(4) |
125x82(4) |
Wheels, number front rear(x=driven wheels) |
|
1+2 |
1+2 |
Tilt of mast/fork carriage forward/backward) |
Grad |
2-5 |
2-5 |
Height, mast lowered |
h1(mm) |
2375 2125 2625 |
2675 2345 2185 2505 |
Free lift |
h2(mm) |
~ ~ ~ |
2000 1700 1575 1825 |
Max. lift height |
h3(mm) |
3500 3000 4000 |
4500 5000 5500 6000 |
Height, mast extended |
h4(mm) |
4535 4035 5035 |
7035 6035 5535 6535 |
Height of overhead guard |
h6(mm) |
2246 |
2246 |
Overall width |
b1/b2(mm) |
1308 /1040 |
1370/1040 1308/1040 |
Overall length |
l1(mm) |
2585 |
2609 |
Length to face of forks |
l2(mm) |
1515 |
1539 |
Fork Dimension |
s/e/l(mm) |
35/100/1070 |
35/100/1070 |
Reach distance |
l4(mm) |
1200 |
1200 |
Fork height, lowered |
h8(mm) |
130 |
130 |
Distance of “X” (see below diagram) |
mm |
350 |
350 |
Overall length (excluding the fork) |
mm |
1868 |
1868 |
Ground clearance, centre of wheelbase |
m2(mm) |
65 |
65 |
Aisle width for pallets 1000x1200 crossways |
Ast(mm) |
2951 |
2971 |
Aisle width for pallets 800x1200 lengthways |
Ast(mm) |
3034 |
3056 |
Turning radius |
Wa(mm) |
1718 |
1718 |
Travel speed, laden/unladen |
Km/h |
6.5/7 |
6.5/7 |
Lift speed, laden/unladen |
m/s |
0.135/0.16 |
0.135/0.16 |
Lowering speed, laden/unladen |
m/s |
0.15/0.12 |
0.15/0.12 |
Battery voltage, nominal capacity K5 |
V/Ah |
24/420(560) |
24/420(560) |
Battery weight |
kg |
450 |
450 |
Battery dimension l/w/h |
mm |
770x336X610 |
770x336X610 |
Service weight (with battery) |
kg |
2530 2480 2590 |
3030 2830 2730 2930 |
If you have needs to buy a high quality pallet stacker forklift, please visit our website.
