N21

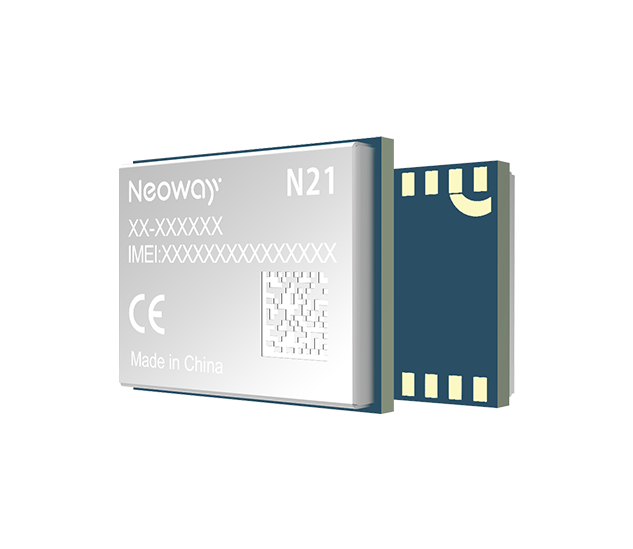

Neoway N21 is a low power lte consumption and high-performance NB-IoT module that supports eSIM cards. Its dimensions are only 18.0 mm x 13.8 mm x 2.5 mm. Its pins are packaged in LGA, which reduces the product area. The Neoway NB-IoT module N21 series can be used in most regions where NB-IoT networks are deployed, including Asia, Europe, and Australia. Neoway cellular IoT module N21 integrates industrial UART interfaces and supports various network protocols, such as CoAP, UDP, TCP, IP, and MQTT. With low power consumption, ultra-wide operating temperature range, and excellent RF performance, NB module Neoway N21 is the optimal option for energy metering, smart lock, security, environmental monitoring, and other scenarios.

Product Features

All network modes

eSIM optional

BLE GATT Protocol

ePSM

MOTA / FOTA

Specifications

Supply voltage

3.1 V to 4. V, Typ.: 3.6 V

Dimensions

18.0 mm x 13.8 mm x 2.5 mm

Package

22-pin LGA

Interface

UART x 2

PWRKEY_N

RESET_N

WAKEUP_IN

NET_LIGHT

USIM (1.8 V / 3.0 V)

BT

BLE (Generic Attribute profile）

Frequency bands

CN:

HD-FDD NB-IoT: B3/B5/B8

EU:

HD-FDD NB-IoT: B3/B5/B8/B20/B28

Protocol

CoAP/UDP/LWM2M/MQTT/TCP/DTLS/DNS/FTP/HTTP/HTTPS

ESD

VBAT: ±8 kV / ±15 kV

GND: ±8 kV / ±15 kV

ANT: ±8 kV / ±15 kV

Other: ±2 kV / ±4 kV

Region

EMEA

Certifications

CCC, SRRC, CTA, CE, RoHS, REACH, POPs, TIM, Vodafone, Telefonica*, NBTC*, GCF, 电信入库, 移动入库, 联通入库

Now the price of low power cellular modem is reasonable, if you have needs, please contact us.

Localisation : 4th Floor, Building 2, Lianjian Science and Technology Industrial Park, Longhua District, Shenzhen，China, 518101 Shenzheng,
Personne à contacter : way neo, 86 0755 29672566
