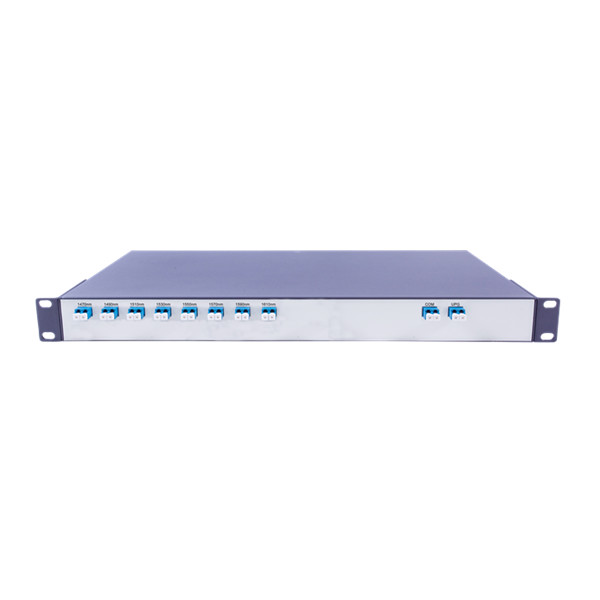

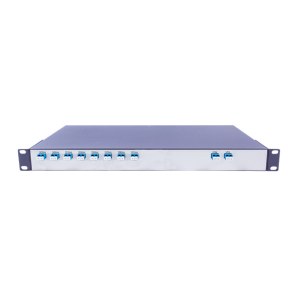

16CH CWDM Mux Demux

CWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels/wavelengths over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates.
It's protocol and rate transparent supporting such applications as 1G/10G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel across the same fiber link.
16CH CWDM Mux Demux features
Multiplexing of up to 16 channels on fiber pair
Low insertion loss
1U 19'' low profile modular design
1% monitor port for Tx and Rx, ensures easy troubleshooting without downtime
Duplex LC/UPC, easily support duplex patch cables between the transceiver and passive unit
Compliant to ITU-T G.694.2 standard and Telcordia GR1209, GR1221
Standard 16-channel CWDM band 1270 nm-1570 nm, 20 nm spacing
Based on thin-film filter technology
Passive, no electric power required. (MTBF ca. 500 years)
16 channel cwdm module Applications
Maximizes fiber in local loop applications
Overlays CWDM with existing1310 nm transmission systems
Provides bidirectional transmission on a single fiber
Supports linear (bus) add/drop architectures
Supports hub-and-spoke ring architectures
16CH CWDM Mux Demux Compliance
ITU-T G.694.2 and G.695
GR-1221 Issue 3 and 1209
RoHS compliant 6/6
16CH CWDM Mux Demux specification
Item CWDM MUX/DEMUX
Channel number 1 2 4 8 16 18
Operating wavelength (nm) 1260~1620
Center wavelength (nm) ITU-T Grid
Channel spacing (nm) 20
Channel insertion loss (dB) ≤0.8 ≤1.2 ≤1.8 ≤2.6 ≤4.5 ≤5.0
Channel bandwidth (dB) ITU±6.5
Flatness (dB) ≤0.5
Adjacent channel isolation (dB) ≥30
Non-adjacent channel isolation (dB) ≥40
Return loss (dB) ≥50
Directivity (dB) ≥55
Polarization-dependent loss (dB) ≤0.2
Polarization mode dispersion (ps) ≤0.2
Power Handling (dB) ≤500
Operating Temperature (°C) 0~+70
Storage Temperature (°C) -40 ~+85
Package type Steel tube, ABS box, LGX standard box, 1U standard 19 inch rack

If you are looking for a reliable 16 channels cwdm mux demux supplier, don't hesitate to contact us!

Sintai, as an excellent optical amplifier company, offers a wide range of optical amplifier for you to choose from.

Localisation : 3-4F, Office Building, No.2 Fangda Road (New Economic Industry Park), Yunpu Industrial Zone, Huangpu District, Guangzhou, 510530 Guangzhou,
Personne à contacter : Yao Jofines , 86 020 82037001
