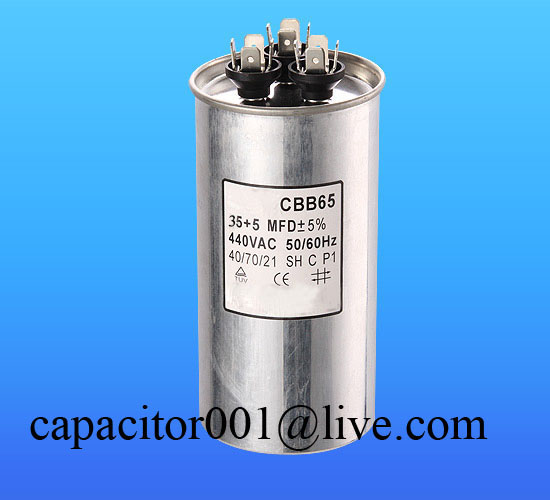

Kvar Box Capacitor

Kvar Box Capacitor
1. Shell: round or oval-shaped aluminum
2. Characteristics and Uses: This product is no sense of metallized polypropyl s, household appliances, electronic products.
3. Technical parameters:
Capacity range: Round 5μF ~ 120μF, oval 5μF ~ 50μF
Capacity Deviation: ± 5%, or by customer requirements.
Rated voltage: 110V ~ 630VAC, 50/60Hz
Operating temperature range: 40/70/21 or 40/85/21
Dissipation factor: ≤ 0.002 (20 °C .50/60Hz)
Resistance between terminal voltage: AC ≥ 1.75Un 5S no breakdown
Resistance between terminal voltage and the shell: AC ≥ 2000V 10S no breakdown
Insulation resistance: between terminations ≥ 3000MΩ.μF (20 °C .100 VAC) rminal and the Department between Rj ≥ 1000MΩ
Executive Standard: GB3667.1-2005, IEC60252-1: 2001
