PTO pellet mill |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
![]() |
PTO Pellet Mill Working Principle
PTO pellet mill machine is based on circular motion of machinery and driven by tractor. Major axis and disk mode are driven by gear wheels to produce friction. Under the frictional force, rollers will rotate by themselves. Then the temperature between roller and die will increase. Powder materials will gelatinize at high temperature. Finally finished pellets will be pressed from moulds and the length of them can be adjusted according to location of the cutter segment.

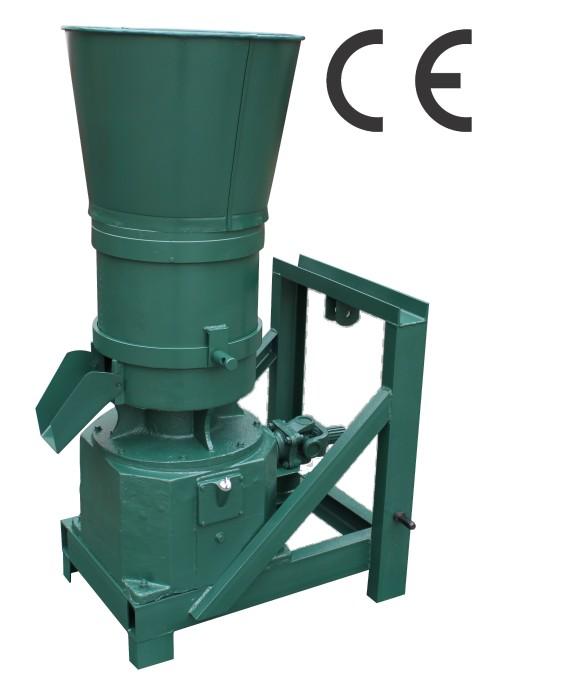

Tractor Driven Pellet Mill
![]() |
![]() |
![]() |
PTO Pellet Mill Application
☆ For biomass pellets: various kinds of agro-forestry wastes such as wood dust, saw dust, straws, stalks, rice husk, medical herbs, bamboo dust and oil cakes, etc. can be processed into fuel for home heating, cooking or bedding materials for animals.
☆ For feed pellets: It can process different materials such as corn, maize, grass, grains, molasses, and some other raw materials into feed pellets for rabbits, chicken, dogs, cattle, sheep, fish, and cattle and so on.
PTO Pellet Mill Parameter
| Model | Power | Die diameter | Size of die hole | Production capacity | Packing dimension (cm) | Weight | |
| Wood pellets | Feed pellets | ||||||
| AMSKL120P | 6-10 hp | 120mm | 2.5-10mm | 40-60kg/h | 60-100kg/h | 57*41*76 | 70/80KG |
| AMSKL150P | 6-12 hp | 150mm | 2.5-10mm | 50-90kg/h | 90-120kg/h | 57*44*76 | 90/100KG |
| AMSKL200P | 10-18 hp | 200mm | 2.5-10mm | 110-140kg/h | 200-300kg/h | 177*54*98 | 140/160KG |
| AMSKL230P | 18-28 hp | 230mm | 2.5-10mm | 150-190kg/h | 300-400kg/h | 77*56*102 | 170/190KG |
| AMSKL260P | 28-45hp | 260mm | 2.5-10mm | 220-280kg/h | 400-600kg/h | 77*56*115 | 200/230KG |
| AMSKL300P | 45-55hp | 300mm | 2.5-10mm | 300-360kg/h | 600-800kg/h | 77*80*116 | 280/300KG |
| AMSKL360P | 50-60hp | 360mm | 2.5-10mm | 600-800kg/h | 600-800kg/h | 77*85*116 | 310/320KG |
| AMSKL400P | 50-70hp | 360mm | 2.5-10mm | 400-550kg/h | 900-1100kg/h | 77*85*116 | 340/360KG |
