Vibrating screen

Quantité : 1 sets   Prix : USD1000/set

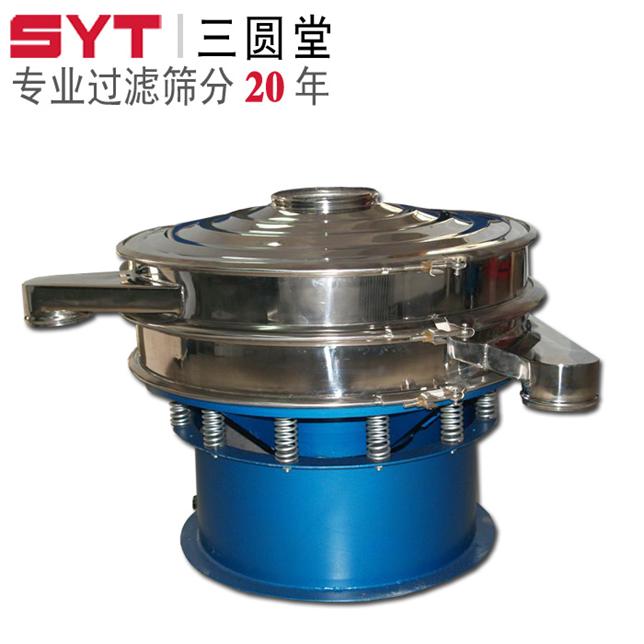

SY series of Vibro separator filter
Brief description

The round separator is a universal device designed with full demonstrability and utmost optimization and have the tend to be standardized. It is very suitable to separate small particle, minuteness powder and the separation of solid and liquid.

Features:
1.This round separator is one of precised powder sieve,it is of high efficiency,and the screening accuracy exceeds 90%.
2.It adopts whole sealing structure design,the sealed effect is fairly well,no dust pollution,no leaking liquid,no material left in machine,and no dead angle in the net frame.
3.Small volume and light weight,easy to be installed and maintained.
4.The outlet can be adjusted at any angle,and it is easy to replace the screen.
5.the rubber ball device can reduce the changce of jam on the screen.
6.By adding the device ultrasonic instrument conversion device, superfine materials up to 600 mesh can be sieved.

Scope of application:
It is widely used in many industries, such as mining,building,materials,metallurgy,casting,abrasive,chemical,light industry,medicine and food industry.
Principle of the structure.
It uses vertical motor as the source of vibration, with eccentric hammer on the both sides of motor ,change circumrotate to level ,upright and incline movement,then pass these three movement to surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement track of the surface screen. This will help to screen different materiel in different situation successfully.

Specification and installation
1.There are seven Specifications for this SY series round separator , materials using in each part can be customized .
2.Pls confirm the voltage and if the motor request for explosion-proof .
3.we can also accept special orders.

Technical parameter for SY series round separator.

Model

Diameter
(mm)

Layers

effective diameter of screen surface (mm)

Sieve mesh specification

Maximum material size (mm)

power(kW)

SY-654

Φ654

1-3

Φ614

2-325 mesh

<20

0.5

SY-800

Φ800

1-3

Φ760

<30

0.75

SY-950

Φ950

1-3

Φ910

<30

0.8

SY-1160

Φ1160

1-3

Φ1120

<30

1.5

SY-1500

Φ1500

1-3

Φ1460

<50

2.2

SY-1768

Φ1768

1-3

Φ1720

<50

2.5

SY-1950

Φ1950

1-3

Φ1910

<60

2.5

Localisation : No 811 Qingnian road Xinxiang County Henan Province China. , 453003 Xinxiang,
Personne à contacter : Peter Wang, 0086 373 5055770
