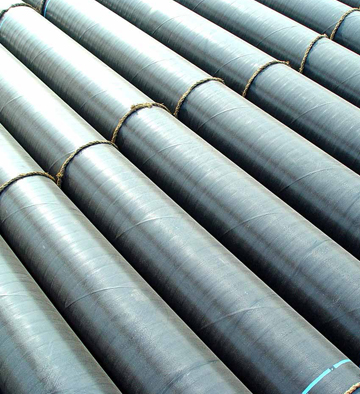

Line pipe
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Steel Pipe Specification |
Steel Pipe Outside Diameter(D) |
Steel Pipe Wall Thickness(S) |
||
|
Pipe Body |
Steel Pipe Outside Diameter (mm) |
Allowable deviation (mm) |
Steel Pipe Outside Diameter (mm) |
Allowable Deviation (mm) |
|
≥60.3andS＜20 |
±0.75％ |
≤73.0 |
+15%,-12.5% |
|
|
≥60.3andS≥20 |
±1.00％ |
＞73.0andS＜20 |
+15%,-12.5% |
|
|
|
|
＞73.0andS≥20 |
+17.5%,-10% |
|
Mechanical Property:
|
Standard |
Grade |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Yield Strength |
Tensile Strength (%) |
Ballistic Work |
Heat Treatment |
|
API SPEC 5L GB/T9711.2 |
B |
≥415 |
245~440 |
≤0.80 |
22 |
≥40 |
normalizing |
|
X42 |
≥415 |
290~440 |
≤0.80 |
21 |
≥40 |
normalizing |
|
|
X52 |
≥460 |
360~510 |
≤0.85 |
20 |
≥40 |
normalizing |
|
|
X60 |
≥520 |
415~565 |
≤0.85 |
18 |
≥40 |
normalizing |
|
|
X65 |
≥535 |
450~570 |
≤0.90 |
18 |
≥40 |
quencher backfire |
|
|
X70 |
≥570 |
485~605 |
≤0.90 |
18 |
≥40 |
quencher backfire |
Notice:
1．0.015％≤ Altot ＜0.06％; N≤0.012％; Al/N≥2/1; Cu≤0.25％; Ni≤0.30％; Cr≤0.30％; Mo≤0.10％
2．V＋Nb＋Ti≤0.15
3．X60、X65、X70after negotiationMo≤0.35％
|
API LINE PIPE LIST |
|
Size |
Outside diameter |
Wall thickness |
Calculated mass |
|||||
|
Plain end |
Threaded and coupled |
|||||||
|
in |
m |
in |
mm |
lb/ft |
kg/m |
lb |
kg |
|
|
0.405” |
0.405 |
10.3 |
0.068 |
1.7 |
0.24 |
0.36 |
0.20 |
0.09 |
|
0.540” |
0.540 |
13.7 |
0.088 |
2.2 |
0.43 |
0.62 |
0.20 |
0.09 |
|
0.675” |
0.675 |
17.1 |
0.091 |
2.3 |
0.57 |
0.84 |
0.20 |
0.09 |
|
0.840” |
0.840 |
21.3 |
0.109 |
2.8 |
0.85 |
1.28 |
0.20 |
0.09 |
|
1.050” |
1.050 |
26.7 |
0.113 |
2.9 |
1.13 |
1.70 |
0.20 |
0.09 |
|
1.315” |
1.315 |
33.4 |
0.133 |
3.4 |
1.68 |
2.52 |
0.20 |
0.09 |
|
1.660” |
1.660 |
42.2 |
0.140 |
3.6 |
2.27 |
3.43 |
0.60 |
0.27 |
|
1.900” |
1.900 |
48.3 |
0.145 |
3.7 |
2.72 |
4.07 |
0.40 |
0.18 |
|
2 3/8” |
2.375 |
60.3 |
0.154 |
3.9 |
3.66 |
5.42 |
1.20 |
0.54 |
|
2 7/8” |
2.875 |
73.0 |
0.203 |
5.2 |
5.80 |
8.69 |
1.80 |
0.82 |
|
3 1/2” |
3.500 |
88.9 |
0.216 |
5.5 |
7.58 |
11.31 |
1.80 |
0.82 |
|
4” |
4.000 |
101.6 |
0.226 |
5.7 |
9.12 |
13.48 |
3.20 |
1.45 |
|
4 1/2” |
4.500 |
114.3 |
0.237 |
6.0 |
10.80 |
16.02 |
4.40 |
2.00 |
|
5 9/16” |
5.563 |
141.3 |
0.258 |
6.6 |
14.63 |
21.92 |
5.60 |
2.54 |
|
6 5/8” |
6.625 |
168.3 |
0.280 |
7.1 |
18.99 |
28.22 |
7.20 |
3.27 |
|
8 5/8” |
8.625 |
219.1 |
0.277 |
7.0 |
24.72 |
36.61 |
14.80 |
6.72 |
|
8 5/8” |
8.625 |
219.1 |
0.322 |
8.2 |
28.58 |
42.65 |
14.00 |
6.36 |
|
10 3/4” |
10.750 |
273.1 |
0.279 |
7.1 |
31.23 |
46.57 |
20.00 |
9.08 |
|
10 3/4” |
10.750 |
273.1 |
0.307 |
7.8 |
34.27 |
51.03 |
19.20 |
8.72 |
|
10 3/4” |
10.750 |
273.1 |
0.365 |
9.3 |
40.52 |
60.50 |
17.40 |
7.90 |
|
12 3/4” |
12.750 |
323.9 |
0.330 |
8.4 |
43.81 |
65.35 |
32.60 |
14.80 |
|
12 3/4” |
12.750 |
323.9 |
0.375 |
9.5 |
49.61 |
73.65 |
30.80 |
13.98 |
|
14” |
14 |
355.6 |
0.375 |
9.5 |
54.62 |
81.08 |
24.60 |
11.17 |
|
16” |
16 |
406.4 |
0.375 |
9.5 |
62.64 |
92.98 |
30.00 |
13.62 |
|
18” |
18 |
457.0 |
0.375 |
9.5 |
70.65 |
104.84 |
35.60 |
16.16 |
|
20” |
20 |
508.0 |
0.375 |
9.5 |
78.67 |
116.78 |
42.00 |
19.07 |
Personne à contacter : lily jing, 0086 29 85370919
