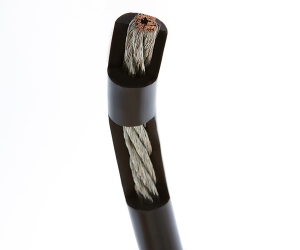

UL1015 PVC cable

Product Description:
Heavy wall (.032") PVC insulated general purpose electronic hook-up wire resistant to water, oil acids, solvents and fungus. Designed for use as internal wiring of appliances. MTW rated as machine tool wire for appropriate sizes.

Features:
Conductor: Stranded Tinned Copper and Bare Copper
Insulation : PVC (Polyvinyl chloride )
Temperature Rating : 105ºC
Voltage Rating : 600 Volts R.M.S.
Test : passes UL VW-1 and CSA FT1 vertical flame test

Structure Size

Conductor

Insulation

Max Resistance 20℃ Ω/Km

Spec AWG

Area mm2

NO/D

Diameter mm

Nominal Thickness mm

Nominal Diameter mm

Max Diameter mm

30

0.0550

7/0.100

0.300

0.76

1.82

2.02

332.0

28

0.0960

19/0.08

0.400

0.76

1.92

2.12

191.0

26

0.1307

26/0.08

0.471

0.76

1.99

2.19

140.0

24

0.2407

19/0.127

0.635

0.76

2.16

2.36

76.0

22

0.3820

19/0.16

0.800

0.76

2.32

2.52

48.0

20

0.6149

19/0.203

1.015

0.76

2.54

2.74

30.0

18-1

0.8415

26/0.203

1.195

0.76

2.72

2.92

21.8

-2

0.8107

16/0.254

1.173

0.76

2.69

2.89

22.0

16

1.3200

26/0.254

1.495

0.76

3.02

3.22

13.9

14

2.0800

41/0.254

1.877

0.76

3.40

3.60

8.8

12

3.2900

65/0.254

2.363

0.76

3.88

4.08

5.6

10

5.2300

65/0.320

2.980

0.76

4.50

4.70

3.5

9

6.7600

84/0.320

3.380

0.76

4.90

5.10

2.7

The data in this catalogue is only used for reference, but not for the formal production. The specifications of the product are subject to the datasheet confirmed by both the supplier and the customer. Sanew Cable owns the final right of interpretation.

Localisation : Binhefang,Daxing District,Beijing,China, 102600 Beijing,
Personne à contacter : Helen Zhang, +86 13701325886
