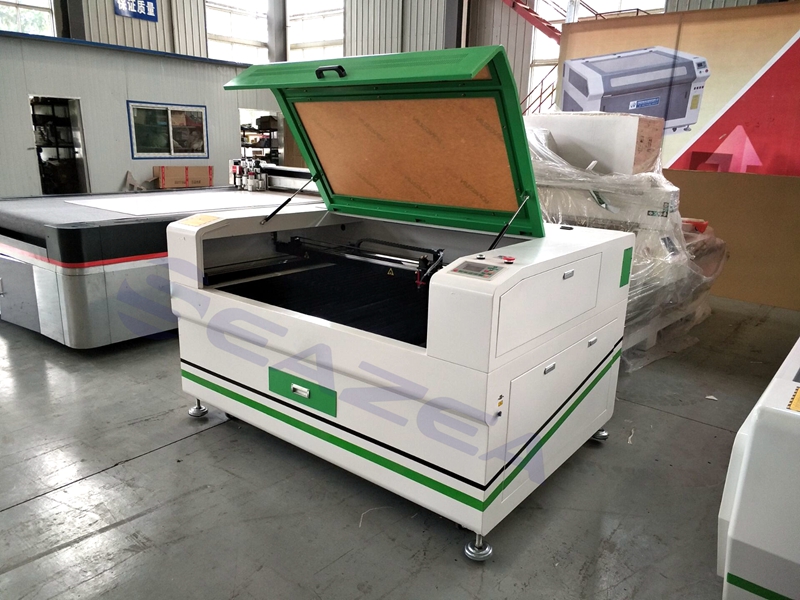

Laser engraver machine
Détails
Chine (Rép. pop) Meubles
Meubles

Laser engraver machine

Prix : FON USD 3000

Features

 CE&RoHS Compliance
All LP products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). LP will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

Drag-N-Play

The "Drag-N-Play" feature greatly reduces complex set up procedures and allows users to directly drag the lens carriage to the starting point of a job.

SmartPIN™ AutoFocus (Patented)
The plug and play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality even on transparent materials


Easy to Use Control Panel

A control panel with coherent hot-key design and graphical icon displays that allows you to change laser parameter settings, set jobs to repeat unlimited times, queue jobs, delete jobs, and more.

emergencySTOP.jpg Key Switch Emergency Stop
Key switch safeguards the machine from unauthorized use.Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.

Specs

Model LP-13
Working Area 1300*900mm
Laser Power 80W/100W/130W/150W
Laser Type CO2 Sealed Laser Tube, 10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control (0-100% Set by Software )
Min. Engraving Size Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision 4000DPI
Locating Precision ≤+0.01mm
Controlling Software DSP Control System
Graphic Format Supported DST PLT BMP DXF DWG AI LAS,etc
Compatible Software TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc
Color Separation Yes
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipments Exhaust Fan and Air Exhaust Pipe
power Supply AC110V/220V+10%,50HZ/60HZ
Working Environment Temperature: 0-45℃,Humidity 5-95%(No Condensate Water)
Optional Spare Parts Honeycomb Worktable, Rotary Device,Auto-focus Device


Materials

Material

 360桌面截图20171217152103.jpg 360桌面截图20171217152118.jpg 360桌面截图20171217152131.jpg
Acrylic √ √ ×
Glass √ × ×
Laminates √ √ ×
Leather √ √ ×
Metal × × ×
Paper √ √ ×
Plastics √ √ ×
Stone √ × ×
Textiles √ √ ×
Wood √ √ ×

Showcase


Stone

bamboo 7.jpg

Bamboo

 double color 12.jpg

Plastic

MDF laser cutting sample (5).jpg

Wood
