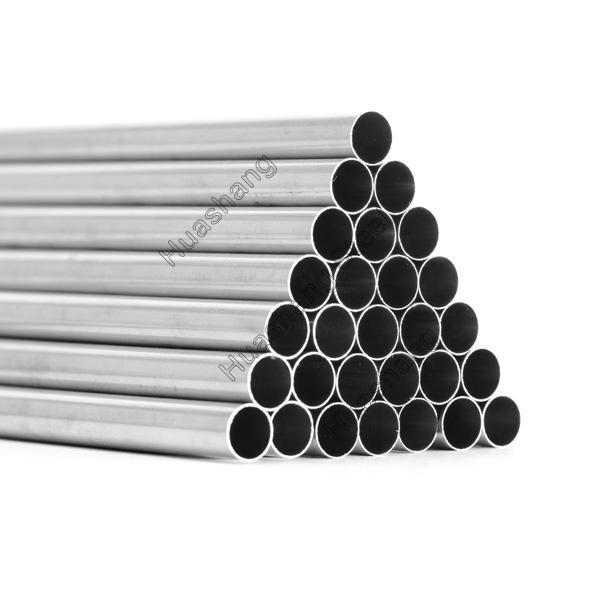

Bright Annealed Tubes |
OD(mm)*T.W (mm) |
4.76×0.51/4.76×0.71/4.76×0.89/4.76×1.24 |
6×1/6×1.5 |
6.35×0.51/6.35×0.71/6.35×0.89/6.35×1.24/6.35×1.65 |
7.94×0.71/7.94×0.89/7.94×1.24/7.94×1.65 |
9.53×0.71/9.53×0.89/9.53×1.24/9.53×1.65 |
10×1/10×1.5/10×2 |
12×1/12×1.5 |
12.7×0.71/12.7×0.89/12.7*1.24/12.7×1.65 |
15.88×0.71/15.88×0.89/15.88×1.24/15.88×1.65/15.88×2.11 |
16×1/16×1.5/16×2 |
19.05×1/19.05×1.24/19.05×1.65/19.05×2.11 |
25.4×1.24/25.4×1.65/25.4×2.11/25.4×2.54 |
31.8×1.24/31.8×1.65/31.8×2.11/31.8×2.54 |
38.1×1.24/38.1×1.65/38.1×2.11/38.1×2.54/38.1×3.05 |
Bright Annealed Tubes Materials
Austenitic Stainless Steel:
TP304, TP304L, TP304H, TP304LN, TP316/TP316L, TP316H, TP316Ti, TP316LN, TP321, TP321H,TP317, TP317L, TP347, TP347H, TP310S, TP310H, TP904L, 254Mo. S30432, S31042, N08367
Duplex & Super Duplex Steel: S31500, S32101, S32003, S32304, S31803, S32205, S32750, S32760
Nickel Alloy Steel:
N06600, N06601, N06625, N07718, N08800, N08825, N10276, N04400, N05500, N02200, N02201, N08028, N08810, N08811, N08020, N10624, N10629, N10675
Bright Annealed Tubes Standard
ASTM A789, ASME SA789, EN10216-5, ASTM B163, ASTM B167, ASME SB163, ASME SB167, ASTM B668, ASME SB668, ASTM A269, ASME SB677, ASTM A213, ASME SA213, ASME SA269, ASMT A270, ASTM B622, ASTM B516
Heat Treatment: Bright Annealed
NDT: Eddy Current or Hydraulic test or UT
Chemical Composition of Nickel Alloy, Duplex steel & Austenitic Steel
Grade C Si Mn P S Cr Ni Mo Ti N With Fe To the What Zr Nb Tu will
Max Max Max Max Max Max Max Max Max Max
Nickel Alloy
Inconel 600/No6600/2.4816 0.15 0.5 1 0.015 14-17 ≧72 0.5 6.0-10.0
Inconel 600/No6601/2.4851 0.1 0.5 1.5 0.015 21-25 58-63 1 1.0-1.7
Inconel 690/No6690 0.05 0.5 0.5 0.015 27-31 58 0.5 7.0-11.0
Inconel 625/No6625/2.4856 0.1 0.5 0.5 0.015 0.015 20-23 ≧58 8.0-10.0 ≦0.4 5 ≦0.4 3.15-4.15
Inconel 718/No7718/2.4668 0.08 0.35 0.35 0.015 0.015 17-21 50-55 2.8-3.3 0.65-1.15 0.006 0.3 Remainder 0.2-0.8 4.75-5.5
Incoloy 800/No8800/1.4876 0.1 1 1.5 0.015 19-23 30-35 0.15-0.6 0.75 ≧39.5 0.15-0.6
Incoloy 800H/No8810/1.4958 0.05-0.1 1 1.5 0.015 19-23 30-35 0.6-1.2 0.75 ≧39.5 0.15-0.6 1
Incoloy 825/No8825/2.4858 0.05 0.5 1 0.03 19.5-23.5 38-46 2.5-3.5 1.5-3 ≧22 0.2
C-276/No10276/2.4819 0.01 0.08 1 0.04 0.03 14.5-16.5 Balance 15.0-17.0 4.0-7.0 2.5 3-4.5 0.35
Monel 400/No4400/2.4360 0.3 0.5 2 0.024 ≧63 28-34 2.5
Monel K-500/No5500 0.18 0.5 1.5 0.01 63 0.35-0.85 27-33 2 2.3-3.15
Alloy 20/No8020/2.4660 0.07 1 2 0.045 0.035 19-21 32-38 2.0-3.0 3.0-4.0 Balance 8C-1
Alloy 28/No8028 0.03 1 2.5 0.03 0.03 26-28 30-34 3.0-4.0 0.6-1.4 Remainder
Duplex Steel
S31803 / 1.4462 0.03 1 2 0.03 0.02 21-23 4.5-6.5 2.5-3.5 0.08-0.2 <span s
