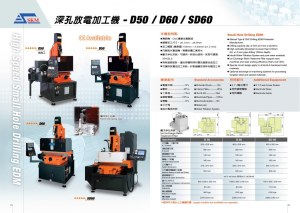

Small Hole Drilling EDM Series D50,D60,SD60
Détails
Taiwan Biens d'équipement
Biens d'équipement

Small Hole Drilling EDM Series D50,D60,SD60

Quantité : 30 sets

Manual type & CNC Drilling EDM profession manufacturer.
Drilling capacity dia. is fromФ0.1mm to Ф6.0mm.
High verticality (deviation) is lower than 0.03.
Inbuilt water filtration system and pure water available.
Ion Exchange Resin Treatment Filter support more machines and raise working efficiency that's over 30%
Special circuit design applies to all kinds $ hardened metal materials.
Optional discharge oil machining systems for processing tungsten steel and special materials

Specification
D 50
D 60
SD 60
X, Y-Travel
300 x 200 mm
400 x 300 mm
400 x 300 mm
Z-Travel
360 mm
360 mm
360 mm
Backslide Travel
140 mm
190 mm
190 mm
Vertical Head Travel
160 mm
160 mm
160 mm
Table Dimension
410 x 210 mm
550 x 310 mm
550 x 310 mm
Max. Distance on Table Quill
350 mm
400 mm
400 mm
Electrode Pipe Dimension
φ0.3 ~ φ3.0 mm ( special φ0.1 ~ φ6.0mm )
Max. Workpiece Dimension
630 x 520 x 300 mm
1000 x 650 x 300 mm
750 x 560 x 300 mm
Dielectric Tank Capacity
30 Litre
30 Litre
110 Litre
Machine Weight
900 kgs
1300 kgs
1500 kgs
Machine Height
2370~2255 mm
2380~2150 mm
2390~2180 mm

Localisation : No 46, Lane 88, kwang Fu Rd, Sanchung Dist. , 24158 New Taipei City,
Personne à contacter : Brian Li, +886285112370
