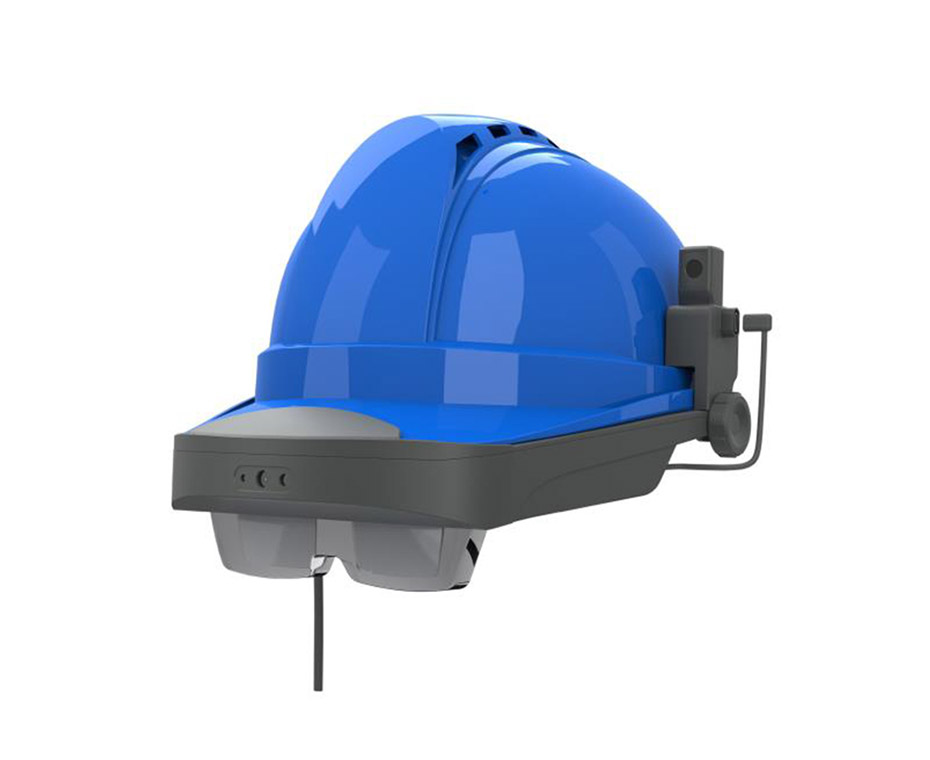

M100S AR Glasses |
M100S AR Glasses |
Description |
Thermal imaging camera |
256x192 resolution |
Display |
Optical waveguide display lens |
Command platform |
Android APP.+Win10+cloud |
Connection terminal |
PC, Android phone, Android tablet, 4G SIM |
Thermal imaging camera parameters |
Wavelength range: 8~14um |
Thermal sensitivity (NETD) |
≤60mK@25℃ |
Non-uniform correction |
Automatic shutter correction |
Focusing method |
Non-thermal fixed focus lens |
Field of view |
52x46 degrees |
Virtual imaging |
55”3 meters |
Eyebox |
7.6x10mm |
Micro display size |
OLED, 0.23" |
Resolution |
640(H)x400(V) |
Light transmittance |
80% |
Main chip |
HiSilicon 3520D |
Charging voltage |
5.0V |
Charging port |
Micro USB |
Battery capacity |
2500mAh |
Maximum continuous working time |
1.5 hours |
Internal storage |
64Gb |
Waterproof rating |
IP67 |
System weight |
250 grams |
Certification |
Explosion-proof certification (Ex ic IIB T4 Gc) |
Features Of M100S AR Glasses
The mask-type ar glasses are of multi-function such as small size, lightweight, convenient operation, comfortable wearing, and do not affect firefighters' normal fire fighting operations.
M100-S integrates a thermal imaging camera, optical waveguide display lens, image processing chip, wireless transmission chip, and antenna, etc.
Firefighters can penetrate the smoke to find the trapped people and the inside of the fire scene, and at the same time, the firefighters can put out the fire and rescue the injured in time in the smoke.
The video images inside and outside the fire scene are transmitted to the rescue command system in real-time for decision-making.
Goolton is a professional augmented reality development company, we provide smart eyes glasses, ar wearables, ar on glasses, ar development services and etc. Want to know more? Please contact us.
