Climbing Formwork

Climbing Formwork

TECON self climbing formwork system mainly includes Self-climbing Formwork TSC80, Jump Climbing Formwork CB180/240, Dam Formwork DB180/240 and Multi-function Climbing Formwork MB180.

Self-climbing formwork TSC80 can climb by itself via hydraulic cylinder, while Formwork CB180/240 can only climb via tower crane lift. Dam Formwork DB180/240 can fabricate both single side wall and double side wall without any tie rod pull through. Multi-function Climbing Formwork MB180 is always guided by its rail during climbing, and it can climb freely with or without tower crane lift sine it has its own mobile hydraulic cylinder.

They are widely used in high-rise buildings, bridge pylons, concrete tanks and other civil engineering project.

Types of Climbing Formwork

Self-climbing Formwork TSC50 & TSC100

TECON Self-climbing formwork TSC50 & TSC100 is a crane independent climbing system lifted by hydraulic cylinders. It offers efficient and cost saving concreting solution for high-rise building, bridge pylons etc.. Up to 100kN lifting capacity and reliable embedded anchorage system ensures stable and safe automatic climbing with integrated formwork together.

Climbing Formwork CB180/240

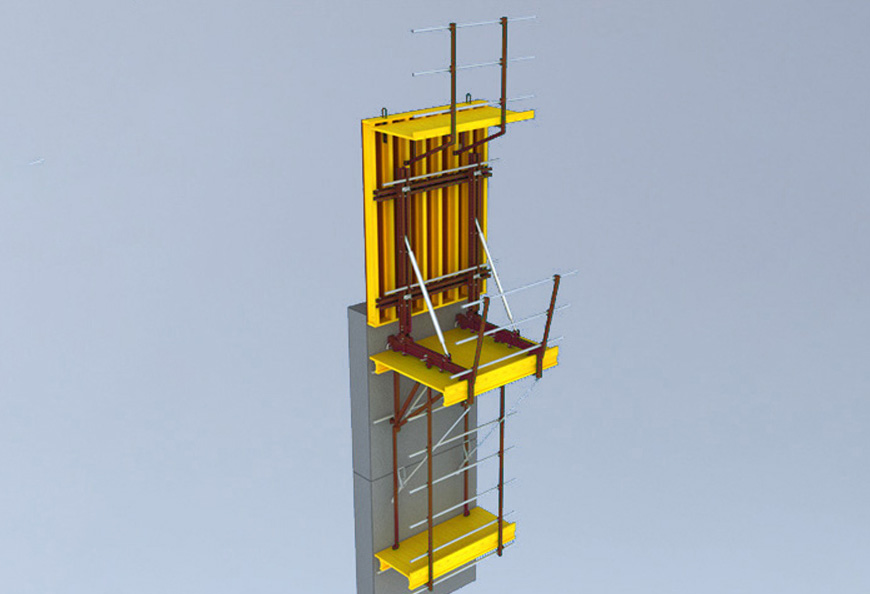

TECON Climbing Formwork CB180 & CB240 is a crane lifted climbing system. The climbing unit consists of formwork panel, climbing bracket, shaft platform beam and anchoring system. It can jump to the next pouring height for the core wall or external wall with the assistance of tower crane, and provides safe workplatform for both formwork panel and site workers.

Dam Formwork DB180/240

TECON Dam formwork DB180 & DB240 is used for forming one-side conrete structure. It has high reliability and bearing capacity for mass concrete structures without tie rods to pull through. It is widely used for in dams, river power stations or navigation locks.

For more info about formwork civil engineering and climbing formwork system, contact us.
