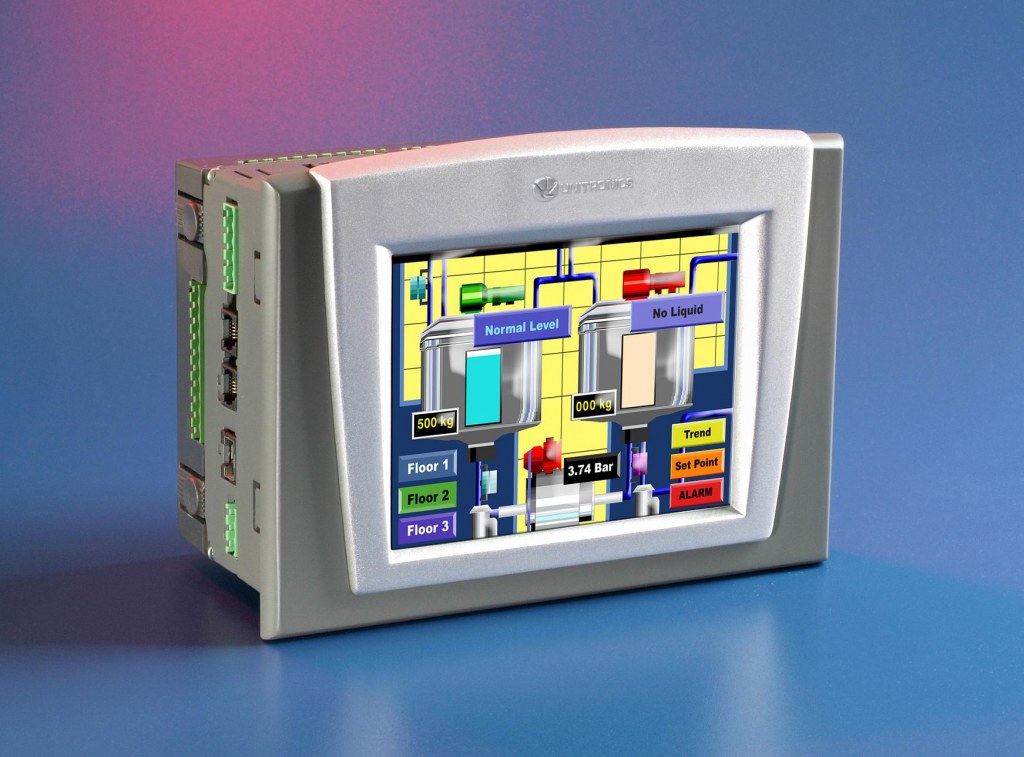

Unitronics Vision 570 Color OPLC

Unitronics Vision 570 Color OPLC – Automate Control Engineering Ltd. (winston@automate-ace.com)< /p>

The new Vision570 offers a quality color touchscreen HMI, integrated

into the newest member of the Vision series PLCs. Marvelously designed

and richly featured, the Vision570 can upgrade any machine, and boost

productivity of any automation system.

PLC:

- Supports up to 171 I/Os via snap-in and expansion modules (same modules as in the current Vision series. Number may vary according to I/O module)

- Application memory: 2MB

- Execution time: 9 μsec per 1K of typical application (2.5 times faster than the V280, for typical application)

- Auto-tune PID, up to 20 independent

loops; establish process control with no extra cost.

- Smart Data Tables, up to 120K (dynamic) and up to 192K (static); for production receipts and data logging.

HMI:

- 256 colors, TFT LCD display

- Resistive, analog touchscreen

- 5.7", 320 x 240 pixels (QVGA)

- Up to 1024 displays per application

- Hundreds of color images can be implemented in one application

- Adjustable screen brightness via the touch panel/ software

- Image library containing hundreds of images
