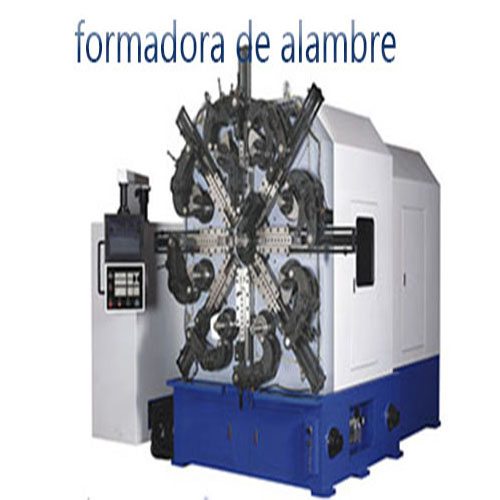

WIRE FORMING MACHINE

Steel wire is a fundamental composite of structural elements. Complex forms are achieved in high speed and accuracy by CNC Technology reaching tight tolerances each and every time the part is formed. There are a large variety of wire forms available for each application in weld carbon, galvanized, stainless, exotic alloys.

A steel wire forming machine can be described by:

1. Feeding material

2. Forms needed.

3. Capacity per period of time.

Standard features:

- 4 to 100-ton presses

- 4 slide work for high production parts

- Air formers and diacros for small runs.

- Key mechanical/electrical components from world class suppliers, upon customer's request.

- English/Spanish/Portuguese/Polish/Russian/Chinese complete user's manual.

- There is an appropriated pipe-mill line for each work. Please contact us for customized equipment.

CM series – 80CNC: Spring and wire forming in cold drawn wire, stainless steel and galvanized wire.

Application

Spring production and wire forming

axis

5 axis

wire size for steel

￠3-8.0mm

wire size for Iron

￠3-10mm

max Outside diameter

Max.￠110

max feed length

unlimited

wire feed speed

75m/min

feeding value

±0.01-±9999.99mm

cam setting value

±0.01°-±359.0°

production rate

50Pcs/minute

total power

32KW

dimensions(l*w*h)

3000*1800*2000mm

weight

9000kg

max capacity of load

1000kg

max speed of table

50rpm

Diameter of table

1600mm

motor

4kw

dimensions(l*w*h)

1730*1600*1305mm

Localisation : Changsha, Wuyi Ave 635, JinXiu ZhongHuan Mansion, Of. 2526Phone: 86 731 83397976 / 88672088, Fax: 86 731 83397976, 420000 changsha,
Personne à contacter : delina wu, 0731 833997556
