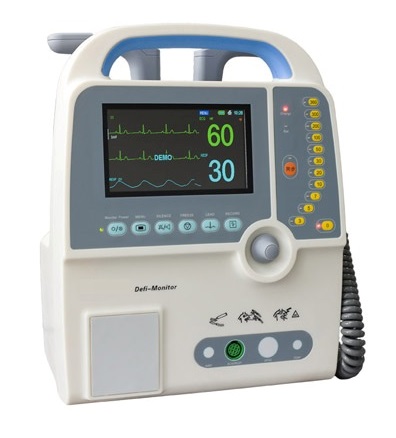

SELL DEFIBRILLATOR

Technical Specifications

Defibrillator

-Defibrillator type: Manual, Synchronized, Asynchronized,

-Out put waveform: Monophasic technology

-Energy accuracy: <+1%</p>

-Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 Joule (nominal at a resistance of 50)

-Charging time: Maximum 8 seconds to 360 Joules

-Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)

.Power requirements

-AC Power supply: 110V, 60 Hz /220V, 50 Hz

-Vehicle Voltage: DC 12V

Internal Battery Backup

-Battery type: Rechargeable lead-acid battery/lithium battery (optional)

-Charging time: Time-Minimum of 4 hours for full charging

-Battery charging: During AC Power Supply operation of the device.

-Charging /Low Battery Indication: Red LED

-Battery Capacity: 100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules.

Display

-LED Dimensions: 7'diagonal {155mm*88mm}

-Type: High resolution true-color graphic LED

-Resolution: 480X234

ECG

ECG lead: I, II, III, AVR, AVL, AVF, V1-V6, GND

S-T segment analysis: -2.0-2.0mv

Arrhythmia analysis: yes

Protection: Withstand 4000vAc/50Hz voltage in isolation and work against electrosurgical interfere and defibrillation

Respiration

Measurement method: Thoracic impedance

Standard parameter & configuration

ECG/ RESP/DEFIBRILLATOR

Optional

Recorder
