EPS Coating Machine

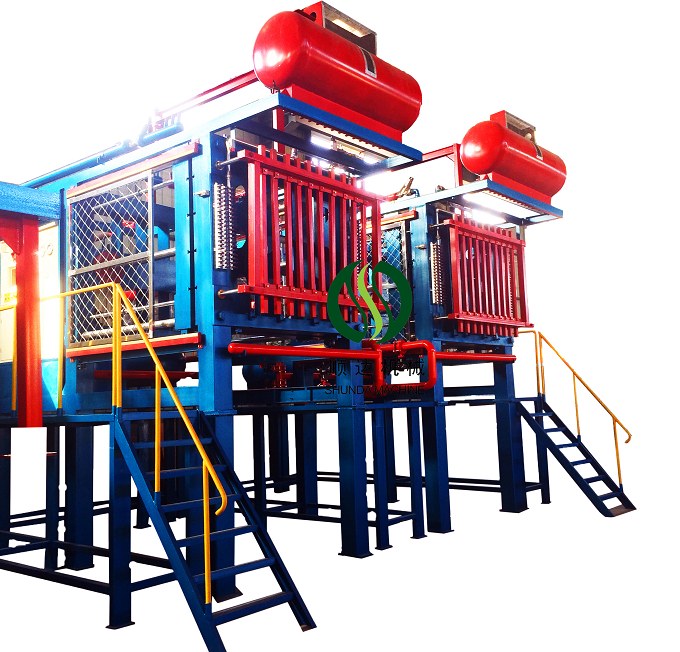

We supply complete eps foam production line and turnkey project. We can upgrade the machines according to customers'requirements. Our company floor area 18000 square meters,Website: http://www.epsmachinefactory.com, has four big modern workshops.Ⅰ.EPS shape production line mainly includes 3 parts: 1. EPS pre-expander: it's used to make EPS raw material to foamed beads2. EPS shape molding machine: it's used to make foamed beads to kinds of shaped products like foam box, electric & electronic package, ICF, helmet, seed tray, decoration cornice and etc.3. Mould: it's hang in the shape molding machine to make different products.Ⅱ.Features of eps foam machinery 1. All the frames are welded, with four horizontal guide rods, adopts PLC control, Mould closing, filling, heating, cooling and demould, the whole procedure automaticcally. All electronic components are world famous brands, ensure the machine is stable running, energy efficiency, longer working life and higher productivity;2. Heating pressure controlled by the e, assisted by the balance valve, ensure the quality of final product.3. Driven by hydraulic system, stable running4. Adopt the pressurized filling system, ensure the enough filling to the mould.5. Adopt the rotary encoder to control the distance between MI and MII, can be adjusted in the touch screen.6. Adopt the fault re-checking system.Ⅲ.Technical Data of eps foam machineryItem/typeUnit PSZ-1200PSZ-1400PSZ-1600PSZ-1800PSZ-2000D imension of standard moldmm1200×10001400×12001600×13501800×16002000×1800Dimension of finished produc tmm1050×850×3501220×1050×3501420×1200×3501610×1400×3501850×1650×350Max mold openingmm130013001300130 01300Inlet of steammmф65ф65ф65ф65ф65Cooling water pressuremmф65ф65ф65ф65ф65Compressed air inletmmф80 ф80ф80ф80ф80Steam pressureMPa0.5～0.70.5～0.70.5～0.70.5～0.70.5～0.7Air pressureMPa≥0.5≥0.5≥0.5≥0.5≥0.5C ooling water pressureMPa0.5-0.60.5-0.60.5-0.60.5-0.60.5-0.6Fluid drive pressureKw5.55.57.57.57.5Powe r of vaccum pumpKw445.55.55.5Inspiratory capacity of vacuum pumpm3/h165165230230230Overall dimension mm3600×17004600×20004600×22004600×24005000×2600×3000×3100×3200×3400×36 00Weight kg4300480052006200650 0Ⅳ.The application of EPS productsEPS Shape Moulding Machine Operation Video
