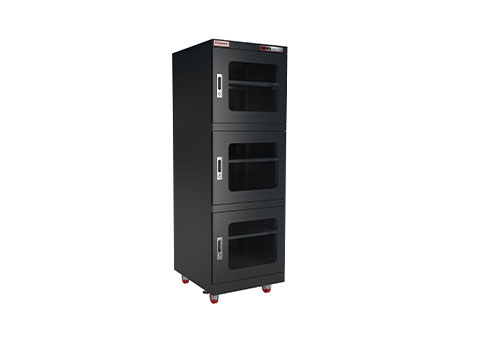

<1 Rh Ultra Low Dry Cabinet CF1 Series
CF Series is a plug-and-play, fully auto-dry low-humidity cabinet that will be stable at <1% RH. There is no need to set the panel buttons at all. Our ultra-low humidity dry cabinet series is specially designed for MSD (moisture-sensitive materials) to comply with IPC J-STD-033 Standard. CF low-humidity storage cabinets series offers high humidity control, and fast recovery time and is supplied with an anti-static body structure, adjustable shelves, wheels (except the 157 and 200 bench top), locking doors, and a decimal digital display.</span>
<1%Rh Ultra Low Humidity Dry Cabinet CF1 Series Specifications</span>
<1%rh Ultra </span>Low Humidity Cabinet CF1 Series CF1-1200-6
Outside Dimension: |
W1200*D672*H1820MM |
Internal Dimension: |
W1198*D644*H1618MM |
Capacity: |
1250L |
Shelves: |
5 shelves |
Power Consumption: |
135w/h(Ave);425w/h(Max) |
Color: |
Black |
Voltage: |
230V/110V |
<1%Rh Ultra Low Humidity Cabinet CF1 Series CF1-600</span>
Outside Dimension: |
W600*D672*H1823MM |
Internal Dimension: |
W598*D645*H1617MM |
Capacity: |
624L |
Shelves: |
5 shelves |
Power Consumption: |
83w/h(Ave);285w/h(Max) |
Color: |
Black |
Voltage: |
230V/110V |
<1%Rh Ultra Low Humidity Storage Cabinets CF1 Series Features</span>
Display Precision: |
3%RH: 1 |
Structure: |
1mm thick carbon steel with paint. |
Door: |
Handles, airtight magnetic sealers, and reinforced glass. |
Wheel: |
Four 3'' wheels, two of them with brakes. |
ESD Paint: |
106~109Ω (surface resistance) |
Grounding Wire: |
1MG (940mm Long) |
Optional Accessories Of < 1%rh Ultra Low Humidity Storage Cabinet CF1 Series
ESD Safety: 106~109Ω
Stainless steel cabinet(SUS#304) is widely adapted in clean room
Slide-shelves: it is convenient for reaching the components.
Nitrogen flow meter.
Warning light and buzzer: it will be activated when relative humidity exceedsthe pre-set limit for 30 minutes.
ESD Wheels
Nitrogen Filling Module(QDN): 7.Nitrogen Filling Module(QDN): The nitrogen will stop as soon as the relative humidity reaches preset digital value. So nitrogen can be dramatically saved. Nitrogen doesn't need to be pumped in continuously.
As one of dry cabinet suppliers, we can offer kinds of dry storage cabinets electronics for sale, anything you need, please leave us a message.
