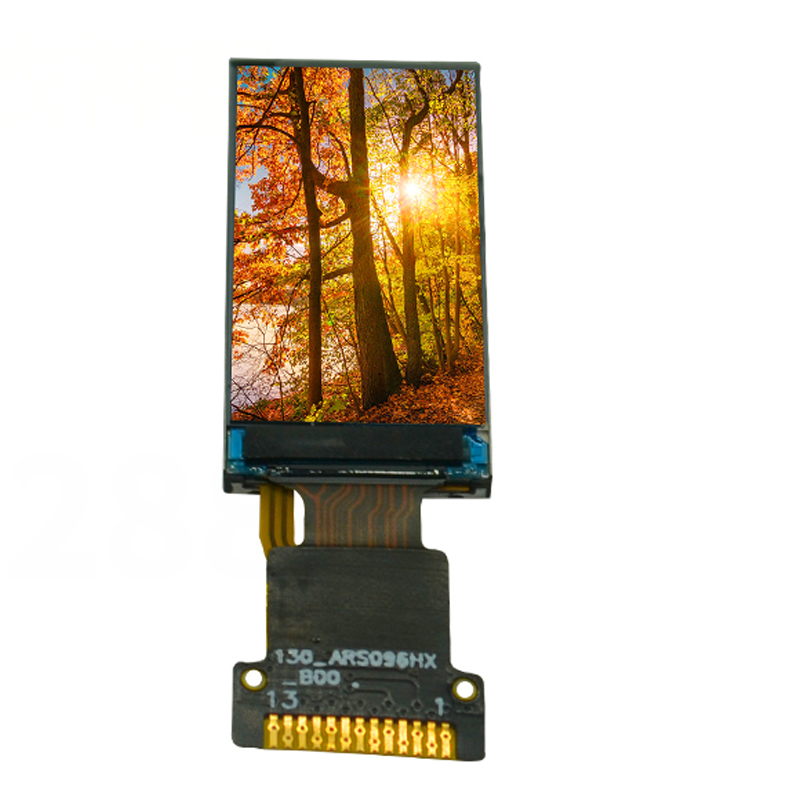

0.96 Inch 80x160 SPI Interface Small LCD Display
- 0.96inch 80x160 TFT LCD module is a small tft lcd display . The resolution is very special and this display supports SPI interface.The TFT display does not have existing resistive touch and capacitive touch, but we can custom LCD screens according to customer requirements. This 0.96 inch lcd can be used for supermarket labels and bracelet.
Features of 0.96 Inch 80x160 SPI Interface small tft screen
80x160 resolution
Vertical / Portrait
Can custom resistive and capacitive touch screen
4 Line SPI interface
Super thinner
Free/full/wide viewing angle
LCD IPS screen
Specification of 0.96 Inch 80x160 SPI Interface Small LCD Display
Kingtech Diaplay will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests for specifications will be welcomed.
Item 0.96inch TFT module display
Model No PV096000AR13A
Resolution 80x160
Outline Dimension 13.5(H)x27.95(V)x1.5(D)
Active Area(mm) 10.8(H)x21.7(V)
Brightness 300nits
Viewing Angle All
Interface 4 Line SPI
Driving IC ST7735S
Display Mode Transmission / Normally Black
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Touch screen Can custom resistive and capacitive touch screen
Application of 0.96 Inch 80x160 SPI Interface Small LCD Display
The 0.96inch 80x160 TFT LCD display can be used for medical device, handheld equipment, industrial control, smart home and supermarket labels and bracelet.
As one of the most professional lcd factories, we providespi lcd display module, spi lcd screen,custom lcd display and etc. Want to buy lcd module or know more? Please contact us.
