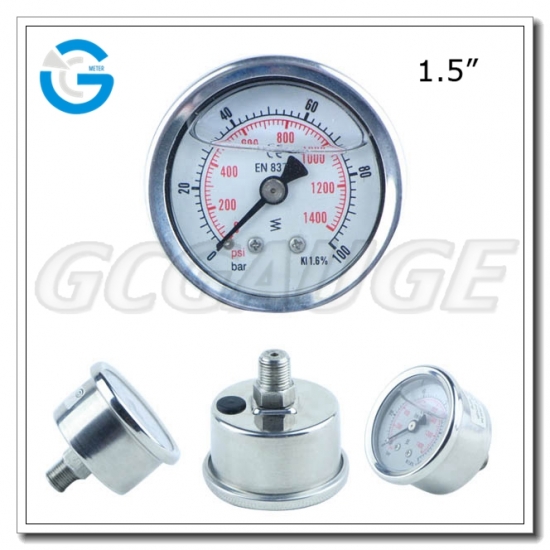

1.5 Inch Diameter 10mpa And Above All Stainless Steel Liquid Filled Pressure Gauge
Small diameter high pressure anti-vibration gauge with oil filled style, which satisfy your requirements for the different equipment.
Specifications of 1.5 Inch Diameter 10mpa And Above All Stainless Steel Pressure Gauge
|
Dial: |
1.5", 2", 2.5", 4",6",8"10" |
|
Scale ranges: |
-1 to 1000bar |
|
Accuracy class: |
1.6%(≤63): 1.0%(≥100,150,200) |
|
Process connection: |
1/8”,1/4",1/2"NPT OR BSP |
|
Burdon tube: |
316LSS,drawn seamless |
|
Wetted parts/socket: |
Stainless steel 304 or 316 or 316L |
|
Movement: |
316SS or 304SS |
|
Pointer: |
Aluminum, micrometer adjustable for option |
|
Welding: |
TIG Welding, Laser Welding |
|
Case material: |
Stainless steel 304, DIN bayonet ring or crimped bezel |
|
Window(lens): |
Safety glass, tempered glass or pc |
|
Fill: |
Glycerin or Silicone |
|
IP class: |
IP 65 |
As an excellent pressure gauge manufacturer, we offer a wide range of dp pressure gauge for you to choose from.
