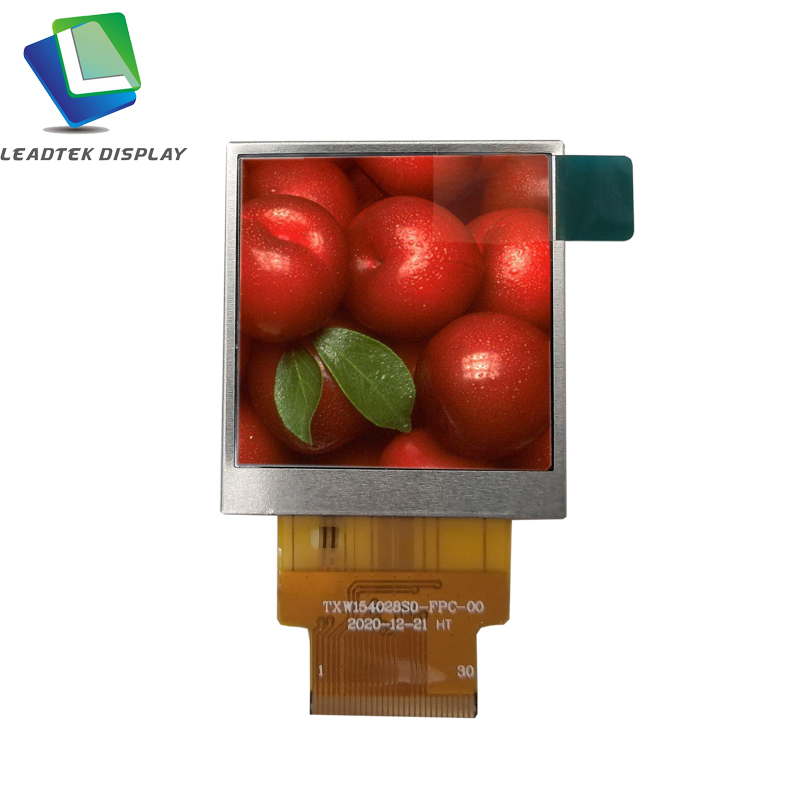

1.54 Inch TFT LCD Screen With 240x240 Resolution MCU Interface
1.54 Inch TFT LCD Screen With 240x240 LCD Resolution MCU Interface
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.54” contains 240(RGB)x240 dots and can display up to 16.7M colors. (S)
Specification of 1.54 Inch TFT Touch Screen With 240x240 Resolution MCU Interface
|
Model Number |
LTK0154P3021TX |
|
Size |
1.54" |
|
Display model |
Normally Black |
|
Resolution |
240*3RGB(H)X240(V) |
|
Interface |
8bit MCU interface |
|
Outline dimension (mm) |
31.92(W) ×35.11(H) ×2.13(T) |
|
Active area (mm) |
27.72(W) ×27.72 (H) |
|
Brightness |
TBD |
As a tft touch screen supplier, we will do our best to meet all the needs of customers.
