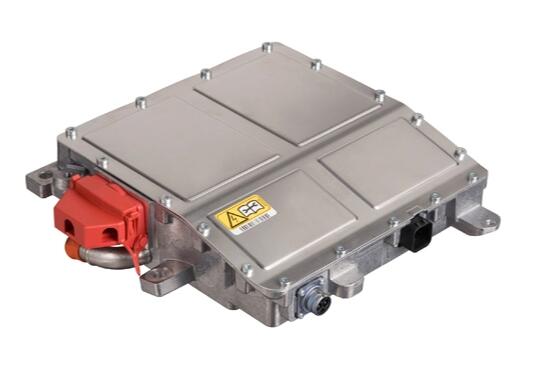

1.5KW DC/DC Converter Unit
Product Features
Adopt advanced high-frequency switching control technology, effectively reducing the size of the product, with the characteristics of high power density.
Support 240 ~ 450Vdc wide range input, flexible to adapt to different models.
High safety electrical isolation of input and output.
Meet the requirements of automotive-grade electromagnetic compatibility.
With functions of over-under voltage protection, over-current protection, over-temperature protection and short-circuit protection, providing safe and reliable assurance.
Standard CAN 2.0B interface design, supporting standard UDS diagnostic development.
Strategy can be customized according to the needs of the whole vehicle, and all software can be upgraded online.
Specification of 1.5KW DC/DC Converter Unit
1.5KW DC-DC Converter |
|
Output power |
1.5KW |
Efficiency |
95% |
Input voltage |
200V DC-420V DC |
Output voltage |
12-14V DC |
Working voltage range |
6-18V |
Water proof |
IP67 |
Heat Dissipation |
Air cooling/Water cooling/Self-cooling |
Control method |
CAN 2.0B |
Net weight |
5.65KG |
Dimension |
307.5*180*108mm |
Characteristics of DC DC Converter 1500W Unit
In the application of DC/DC converters for electric vehicles, the use of smart switching technology enables efficient operation at higher frequencies. By using smart switching technology, the maximum switching frequency of the EV DC/DC converter can be increased to 1.5 kHz, thus increasing the charging efficiency of the EV to more than 80%. At the same time, the loss and temperature rise of the EV DC/DC converter can be effectively reduced by using smart switching technology.
For the design requirements of the DC/DC converter of electric vehicles, power control technology can be used to realize the control of the heat generated during the operation of the DC/DC converter. The power control technique enables efficient operation at lower frequencies.
Now the price of electric axle drive unit is reasonable, if you have needs, please contact us.
