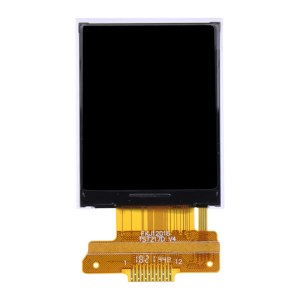

1.77 Inch 128x160 SPI Interface TFT LCD Display
Kingtech 1.77 inch display or 1.8inch 128x160 TFT LCD module is a small size display. This ST7735S driver IC display supports SPI interface.
- TFT module does not have existing resistive touch and capacitive touch, but but we can custom LCD screens according to customer requirements. This 1.77inch or 1.8inch 6 o'clock screen can be used for medical equipment and industrial device.
Kingtech Diaplay, as a LCD panel manufacturer, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
Features of 1.77 Inch 128x160 SPI Interface TFT LCD Display
128x160 resolution
Rectangle display
Can custom TFT resistive touchscreen and capacitive touch screen
SPI interface
Application is for medical equipment
Specification of 1.77 Inch 128x160 SPI Interface TFT LCD Display
Item |
1.8inch 128x160 TFT LCD module |
Model No |
PV017703TD12C |
Resolution |
128x160 |
Outline Dimension |
34(W)x44(H)x2.4(T) |
Active Area(mm) |
28.03(W)x35.04(H) |
Interface |
SPI |
Viewing Angle |
6 O'clock |
Driving IC |
ST7735S |
Display Mode |
Transmissive / Normally White |
Operating Temperature |
-20℃~70℃ |
Storage Temperature |
-30℃~80℃ |
Brightness |
250nits |
Touchscreen |
Can custom resistive and capacitive touch panel |
Application of 1.77 Inch 128x160 SPI Interface TFT LCD Display
1. The 1.77inch or 1.8inch 128x160 rectangle TFT LCD display can be used for medical device, handheld equipment, industrial control, smart home and smart watch.
If you need any kinds of lcd module, please contact us, as a professional lcd panel supplier, Kingtech is willing to offer you high quality products.
