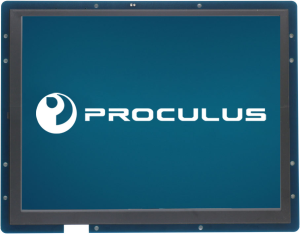

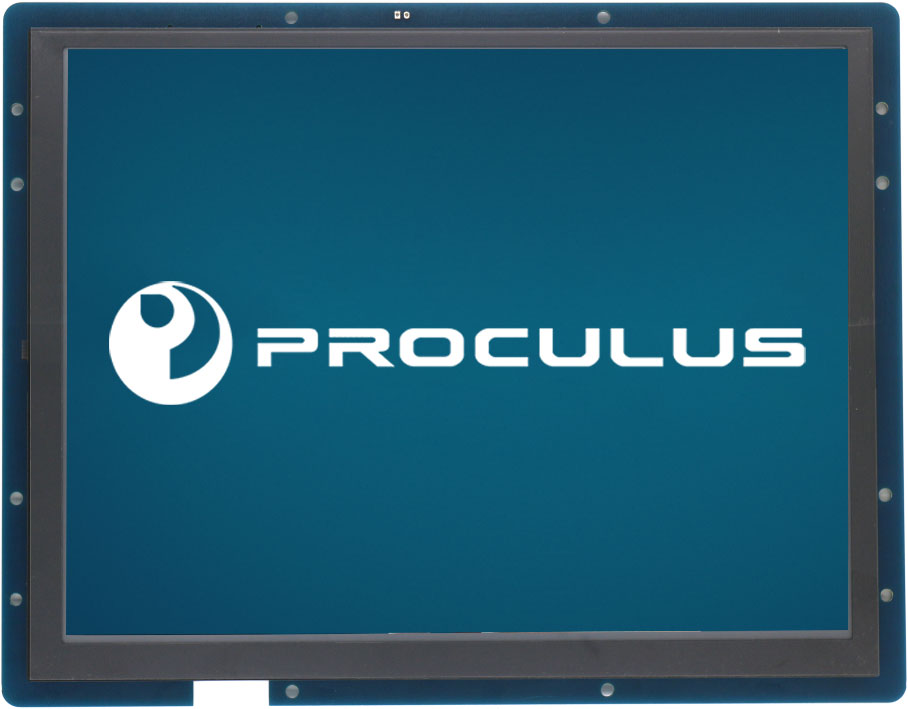

10.4 INCHES, 800XRGBX600, 65K COLORS LCD MODULE

MODEL: P80600V104I_T30

Features of 10.4 Inch 800*600 LCD Module

Support wide range of power supplyDefault is 6~35V, use jumper to choose 4.5~5.5V;

Support RS232/TTL/CMOS, the max baud rate is 115200bps;

Support audio and video;

Support hardware JPG decoding which makes storage more efficient and display quicker;

Support offline batch download through USB Flash Drive, which improves download efficiency and reduce requirements for operators;

Support backlight brightness adjustment and automatic standby screen saver function;

Support multi-language font library, picture, TWO-DIMENSIONAL code display;

Support number and English input, customizable keyboard interface;

Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable visual angle;

Easy-to-use UnicView GUIs Development, no coding skills required;

Instant operation when power on without system load time;

Excellent electromagnetic compatibility characteristics.

Immunity Test of 10.4 inch lcd

ESD test for electrostatic discharge

Test ambient temperature: 25℃

Test ambient humidity: 50%

Test process: Carry out contact and air discharge on the periphery of the iron frame and the display area of the serial port screen in turn, and observe whether the screen has abnormal working phenomena such as reset restart, black screen, white screen, communication interruption, and other abnormalities.

Proculus Technologies is a leading display module manufacturer, we provide touch screen lcd display module, lcd module, 10.4 tft lcd color monitor, 10.4 inch lcd display, 10.4 lcd monitor, 10.4 lcd and etc. Want to know more? Contact us now.
