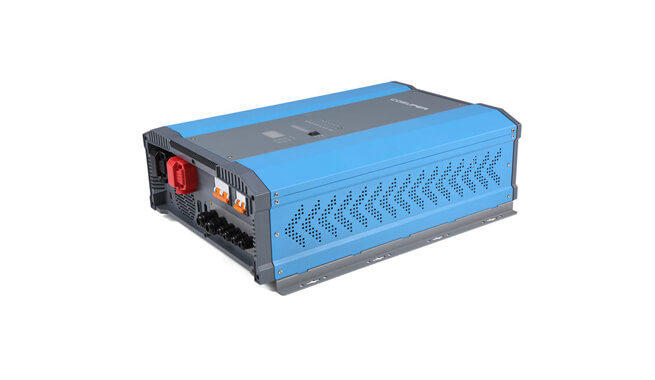

10000W INVERTER CHARGER
The Cosuper CPS10000 model is a powerful true sine wave inverter, a precision battery charger with multi-stage charging technology, and a high-speed AC transfer switch in a compact housing.
It is a great power source for emergency backup power, renewable energy, or off-grid applications as it gives you access to 10000W of continuous power and 30,000W of surge power when a power outage occurs.
The built-in auto transfer switch allows it to automatically switch between battery and grid power or generators with a transfer time of less than 8ms and then other electronic equipment will continue to operate without disruption.
If you are using a generator instead of utility power as backup, the auto generator starter will automatically start the generator when battery voltage goes low.
FEATURES OF 10000W INVERTER CHARGER
Three stage battery charging mode, compatible with Gel, AGM, Flooded, Lithium batteries
Efficient up 3~5% than traditional power frequency inverter
DIP Switches: Low Battery, AC Input Range, Power Saver, Solar/Utility AC Priority
Pure sine wave output, input & output fully isolation
PTM-12 remote controller allows for operation from a distance
Power Saving Mode helps preserve battery capacity over long period of no operation
Electronic protection against Over/under voltage, overload, over-current, overheating, short circuit
2 years warranty
TECHNICAL SPECIFICATIONS OF 10000 WATT INVERTER CHARGER
Models |
CPS10K |
Rated Power(-10-50℃) |
10000W |
DC Input |
|
Rated Voltage |
48VDC (40.0-64.0VDC) |
Max. Charge Current |
70A house battery |
Battery Type |
AGM/Gel/Flooded/Lithium |
AC Input |
|
Output Voltage |
90-140A/170-275VAC |
Input Frequency |
45~65Hz |
AC Output |
|
Output Voltage |
120/240VAC±5% |
Oput Frequency |
50/60Hz±0.3 |
Wave Form |
Pure Sine Wave |
Transfer Time |
≤8ms |
Efficiency |
>88% |
Overload |
105-120% 10s/ >120% 3s/ >150% 1s |
Max. Bypass |
12000W |
Protection |
DC over/low volt, AC input low/low volt, AC short circuit, over temp, overload |
Self-consumption |
60W |
Idle-consumption |
23.5W |
Protection |
|
Dc Low-volt Alarm/Shutdown |
42.0 (Customizable at Engineering mode); x2 for 24V, x4 for 48V |
AC Low-Volt Switch To DC |
187.0V (Customizable at Engineering mode) |
Bypass To Invertering |
198.0V (Customizable at Engineering mode) |
Battery Over-charge Shutdown |
62.8V |
General |
|
Working Temperature |
-10~45℃ |
Storage Temperature |
-20~55℃ |
Work/ Storage Humidity |
0-90% No condensation |
Dimension (W*D*H) |
650*505*210mm |
