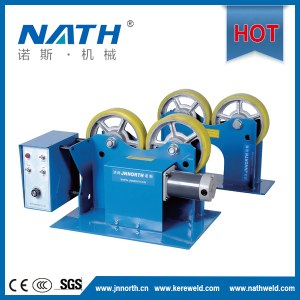

1000kg welding roller
Product Application
This 1000kg type turning roller can hold more than 1000kg workpiece,.and it turning speed can achieve 1000mm/min.usually, it can suitable for welding and cutting of the elongated workpiece.
MAIN FEATURES
Polyurethane wheel,heat-resistant,wear-resistant,non-skid.
Stepless adjustable speed with AC motor,wildly speed adjustable range.
Special design of the wheel structure ,increasing the applicable diameter of the workpiece.
With compact、simple and light structure,adapts to carious working environment.
Equipped with manual control box,the initiation and termination of roller wheel frame are easily taken under controlled.
The manual control box can real-time control the rotating speed,on/off,positive/reverse rotation of roller wheel frame.
Suitable for welding and cutting of the elongated workpiece.
SPECIFICATIONS
|
型号 Model |
NHTR-1000 |
|
输入功率 Power Input |
1 Phase ac 110V/220V 50/60Hz |
|
旋转能力 Turning Capacity |
1000Kg |
|
承载能力 Load Capacity |
1000Kg |
|
最高工作速度 Max Speed |
1500mm/min |
|
适用工件直径范围 Diameter Range |
Ф20-700mm |
|
驱动电机 Drive Motor |
AC 220V 120W |
|
滚轮型号 Roller Type |
NH, 50mm(W)×200mm(Ф) |
|
外形尺寸 Dimension |
520（L）×470(W)×390（H）mm |
Personne à contacter : Shi tina, 86 0531 58768700
