1000nits High Brightness 2.0 Inch 240x320 IPS TFT LCD Display
Kingtech is one of the leading custom LCD manufacturer in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications, lcd display screen, industrial touch screen, outdoor lcd display, round lcd display and etc.

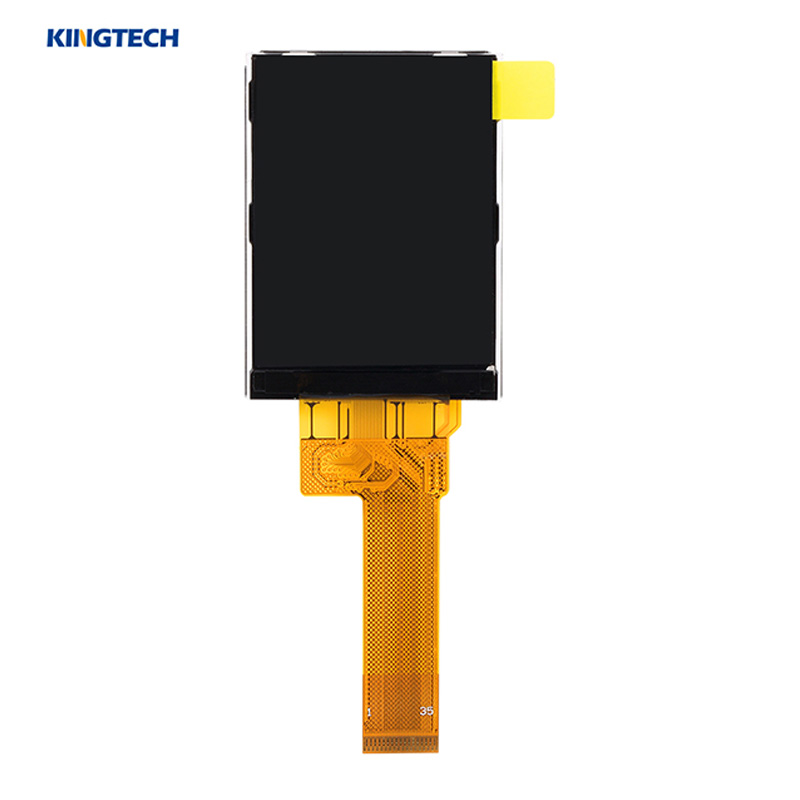

Kingtech 2.0inch 240x320 TFT (QVGA) IPS/free/all/wide viewing angle LCD display is very popular in the market. This one is portrait type, and it's mainly used for handheld devices, medical and E-bike. Plus the 2.0inch can reach 1000nits, so it can be sunlight readable. The 2.0inch IPS display can custom resistive touch and capacitive touch.
Features of 1000nits High Brightness 2.0 TFT LCD Inch 240x320 IPS Display
All/Free/Wide viewing angle
240x320 resolution / QVGA resolution
IPS type
16bit RGB interface
High brightness/sunlight readable/1000nits
Can custom resistive touch and capacitive touch
Small / tiny display
Specification of 1000nits High Brightness 2.0 Inch 240x320 IPS TFT LCD Display
|
Item |
2-inch LCD screen |
|
Model No |
PV02004LZR35G |
|
Resolution |
240*320 |
|
Outline Dimension |
35.9(W)×51.66(H)×2.75(T) |
|
Active Area(mm) |
30.60(W)×40.80(H) |
|
Brightness |
1000 cd/m2 |
|
Viewing Angle |
Free |
|
Interface |
4SPI+16-bit RGB interface |
|
Warranty |
12 months |
|
Driving IC |
ST7789V |
|
Display Mode |
TFT |
|
PIN |
35 |
|
Operating Temperature |
-20~70 |
|
Storage Temperature |
-30~80 |
Application of 1000nits High Brightness 2.0 Inch tft spi 240x320 arduino TFT LCD Display
The 2.0inch IPS display can be used for medical devices, handheld equipment, industrial control, smart Home, POS machines,s and telecom products.
The 2.0inch IPS 1000nits also can be used in sunlight-readable such as advertising machines, automotive devices, and E-bike.
