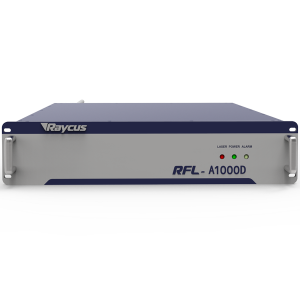

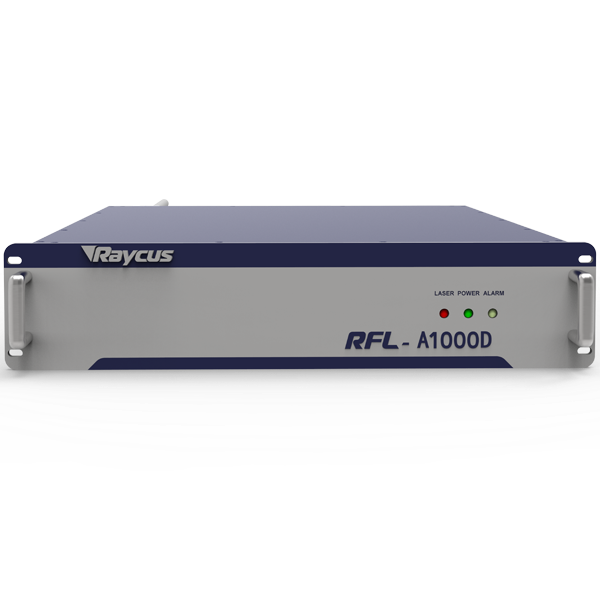

1000W Fiber Delivered Direct Diode Lasers

RFL-A1000D

Medium powered fiber delivered direct diode laser is mainly used for heat conduction welding with low material thickness. With heat conduction welding, the laser melts the sheets along the intended joint. The melts of the joint partners merge together and then cool off to the actual welding seam. Conduction welding is similar to spot welding but allows the laser beam to move after the melt pool is produced. Laser heat conduction welding can be realized more quickly and lower material distortion than usual welding methods. Additionally, smooth and pore-free welding seams are created that do not need any post-processing.

Characteristics Of 1000w laser diode

Technical characteristics

Application Market: laser Soldering and laser beam-transmission welding plastic

Optical Properties

Output power: (W): 1000Operation Mode: CW/ModulatePower Adjusting Range(%): 10-100/Central Wavelength(nm): 915±10（customizable)Output power instability: <3%Modulation Frequency(Hz): 50-5kRed light indicated power(mW): 0.25-1</span>

Output characteristics

Terminal Type: QBHFiber core(μm): 300Beam Divergence(rad): 0.22Delivery Cable Length: 10

Electronic control characteristics

Operation Voltage(V AC): Single Phase 220VAC±10%,50/60Hz ACControl Method: AD

Other characteristics

Dimensions(mm) width*height*depth: 485*237*679(Handle included)Cooling method: Air-cooled

Application Of 1000W Fiber Delivered Direct Diode Lasers RFL-A1000D

3C electricityOptical communicationMicro-electricityCamera MoldHome appliancescarlightingmedicalpackaging

If you want to know more about raycus fiber laser technologies, please visit our website.
