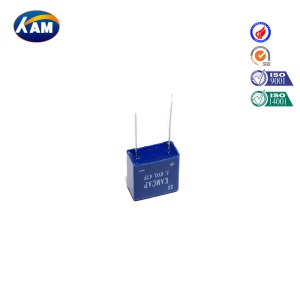

Performance and Typical Application of 5.5V High Temperature Ultracapacitor
As a supercapacitor manufacturer, Kamcap also has 5.5v high temperature series ultracapacitors for sale. The following information can help you know more about this ultracapacitor series.
Performance characteristics: High temperature 85 ° C series
Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Specification and Drawing of 5.5V High Temperature Supercapacitor
|
Series name |
HT Combined series |
|
Type name |
HT-5R5 |
|
Rated voltage |
5.5V |
|
VR |
|
|
Surge voltage |
5.8V |
|
Capacity range |
0.5F~10F |
|
Operating temperature range |
-40 ~ +85℃ |
|
Product life |
Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
|
High temperature endurance life: 85 ° C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
Key Parameters of 5.5V High Temperature Series Supercapacitor
HT -5R5(Connection plate)
|
Model |
Capacity |
ESR mΩ |
Product size (mm) |
||||
|
F |
DC |
AC |
Width |
Length |
Height |
Pitch |
|
|
|
1kHz |
||||||
|
HT-5R5-Z334VYL06 |
0.33 |
2200 |
1100 |
8.5 |
16.5 |
15 |
12 |
|
HT-5R5-Z474TYL16 |
0.47 |
2200 |
1100 |
7 |
13.5 |
12 |
9 |
|
HT-5R5-Z474VYL06 |
0.47 |
1200 |
600 |
8.5 |
16.5 |
15 |
12 |
|
HT-5R5-Z105VYL07 |
1 |
960 |
480 |
8.5 |
16.5 |
22 |
12 |
|
HT-5R5-Z155VYL07 |
1.5 |
560 |
280 |
8.5 |
16.5 |
22 |
12 |
|
HT-5R5-Z155VYL13 |
1.5 |
560 |
280 |
10.5 |
20.5 |
22 |
15.3 |
|
HT-5R5-Z205VYL13 |
2 |
400 |
200 |
10.5 |
20.5 |
22 |
15.3 |
|
HT-5R5-Z205VYL09 |
2 |
360 |
180 |
13 |
25.5 |
23 |
17.8 |
|
HT-5R5-Z255TYL07 |
2.5 |
360 |
180 |
8.5 |
16.5 |
22 |
12 |
|
HT-5R5-Z255VYL13 |
2.5 |
360 |
180 |
10.5 |
20.5 |
22 |
15.3 |
|
HT-5R5-Z255UYL04 |
2.5 |
360 |
180 |
8.5 |
16.5 |
26 |
12 |
|
HT-5R5-Z305VYL13 |
3 |
300 |
150 |
10.5 |
20.5 |
22 |
15.3 |
|
HT-5R5-Z355VYL09 |
3.5 |
280 |
140 |
13 |
25.5 |
23 |
17.8 |
|
HT-5R5-Z355UYL13 |
3.5 |
280 |
140 |
10.5 |
20.5 |
22 |
15.3 |
|
HT-5R5-Z405VYL09 |
4 |
240 |
120 |
13 |
25.5 |
23 |
17.8 |
|
HT-5R5-Z505UYL11 |
5 |
240 |
120 |
10.5 |
20.5 |
27 |
15.3 |
|
HT-5R5-Z505VYL09 |
5 |
220 |
110 |
13 |
25.5 |
23 |
17.8 |
|
HT-5R5-Z505VYL10 |
5 |
220 |
110 |
13 |
25.5 |
27 |
17.8 |
|
HT-5R5-Z505VYL12 |
5 |
220 |
110 |
10.5 |
20.5 |
32 |
15.3 |
|
HT-5R5-Z505VYL19 |
5 |
220 |
110 |
13 |
25.5 |
36 |
17.8 |
|
HT-5R5-Z605VYL19 |
6 |
160 |
80 |
13 |
25.5 |
36 |
17.8 |
|
HT-5R5-Z905UYL10 |
9 |
120 |
60 |
13 |
25.5 |
27 |
17.8 |
|
HT-5R5-Z106VYL19 |
10 |
120 |
60 |
13 |
25.5 |
36 |
17.8 |
|
HT-5R5-Z106VYL21 |
10 |
120 |
60 |
16.5 |
32.5 |
28 |
24 |
|
HT-5R5-Z126VYL21 |
12 |
120 |
60 |
16.5 |
32.5 |
28 |
24 |
We can offer sorts of 5f supercapacitor for sale, if you have needs, please contact us.
