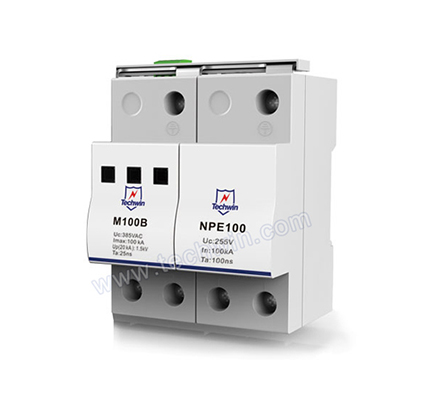

100KA DIN-rail Mounted Large Discharge Current AC Power SPD
Techwin Inc. is one of the most professional surge protection device manufacturers in China. With matured experience in surge protector technology, Techwin surge protection device(SPD) China manufacturer, whose spd surge arresters obtained 28 technology patents and multiple certifications such as CE, ROHS, TUV, UL, CQC, ISO9001, ISO14001, ISO45001 and so on.
M100 series power supply system AC modules are mainly applicable to the power distribution systems for class I . Type 1 surge arrester can protect electrical equipment from the impact of lightning electromagnetic pulse, induced overvoltage, transit operation, and resonance( less than 100 μs) overvoltage. For the Type 1 spd price and other information, please feel free to contact us.
Application of M100B Type 1 Surge Protection Device
Type 1 whole house surge protector device is an AC power surge protection type 1 for AC Power System.
- Sensitive electronic equipment
- Telecom centers
- Automatic control centers
- Intelligent buildings
- Industrial enterprises
- Medical institutes
Technical Parameters of M100B Type 1 Surge Protector
Model |
M100B1 |
M100B2 |
M100B1+N |
M100B4 |
M100B3+N |
Lightning protection zone(LPZ) |
1-2 |
||||
Standards Compliance |
IEC61643-11, EN60950 |
||||
Classification |
Class I /Type 1 |
||||
Nominal working voltage Un |
220V |
385V |
|||
Max continuous operating voltage Uc |
385V |
||||
Nominal discharge current (8/20µs) In |
50KA |
||||
Max discharge current Imax (8/20µs) Imax |
100KA |
||||
Follow current interrupt rating Ifi |
25KArms/100Arms |
||||
Short-Circuit Current Rating Isccr |
25KA |
||||
Temporary overvoltage (TOV)(L-N) Ut |
440 V / 120 min. – withstand |
||||
Temporary overvoltage (TOV) [N-PE) Ut |
1200 V / 200 ms – withstand |
||||
Protection level @40kA, 8/20µs Up |
2100V |
||||
Protection level @20kA, 8/20µs Up |
1500V |
||||
Response time tA (L-N/N-PE) |
25ns/100ns |
||||
Protection model |
L-PE |
L/N-PE |
L-N, N-PE |
L1/L2/L3, N-PE |
L1/L2/L3-N, N-PE |
Dimension |
90 (H)×36(W)×65(L)mm |
90 (H)×72(W)×65(L)mm |
90 (H)×144(W)×65(L)mm |
||
Mounting |
DIN-rail Mounting 35mm |
||||
IP code |
IP20 |
||||
Working conditions |
Temperature: -40 to 80℃, Relative humidity: ≤95% |
Feature of M100B Type 1 AC Power SPD
- Remote alarm.
- large discharge current.
- quick response.
- Standardized module design, easy to install, simple for maintenance.
- Latest arcing technology, avoid fire accident thoroughly.
- Special impact fuse with high reliability.
- The power supply protection devices own internationally famous core components with excellent performance.
