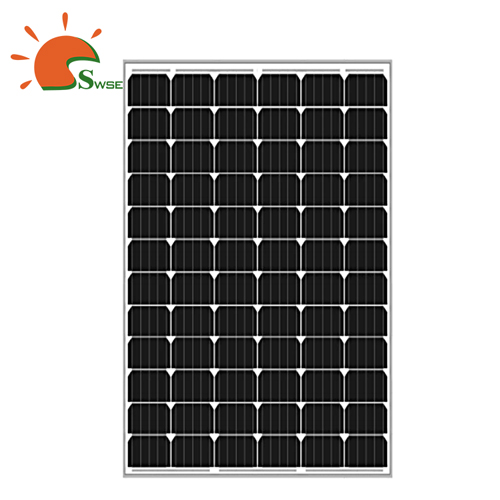

100W Monocrystalline Solar Panel
Sunworth, as one of the professional solar equipment manufacturers and solar electric system providers, implementing strict international standard quality management system ISO 9001: 2015 and ISO14001: 2015.
100W High Efficiency Monocrystalline Solar Panel
Customers can select the power of the panel freely according to the application, space, and where the customer wants to install it. And the 100w solar panel monocrystalline from Sunworth is welcomed by the market.
Advantages of 100W Monocrystalline Solar Panel
- Professional solar PV module manufacturer.
- Fully automated PV module production technology.
- Strong Low-light performance.
- Passed a variety of harsh environmental tests, like salt spray, ammonia and sand storm corrosion tests.
- Excellent anti-PID performance.
- Suitable price of the 100w mono solar panel and 150 watt mono solar panel.
Product Parameters of 100W Monocrystalline Solar Panel
Electrical Parameters
|
Model No. |
SW090M-36 |
SW100M-36 |
SW110M-36 |
SW125M-36 |
|
Max Power |
90W |
100W |
110W |
125W |
|
Max Voltage |
19.19V |
18.50V |
19.00V |
19.53V |
|
Max Current |
4.69A |
5.41A |
5.79A |
6.40A |
|
Open-circuit Voltage |
23.81V |
22.54V |
23.17V |
24.31V |
|
Short-circuit Current |
4.87A |
5.74A |
6.14A |
6.60A |
|
Module Efficiency |
17.83% |
14.96% |
16.46% |
18.70% |
|
Operating Temperature |
-40℃~+85℃ |
|||
|
Max System Voltage |
300Vdc |
600Vdc |
||
|
Max Series Fuse Rating |
10A |
10A |
10A |
10A |
|
Power Tolerance |
±3% |
|||
|
*STC condition: 1000 W/m² |
1.5AM and 25℃ cell temperature |
|||
Temperature parameters
|
NMOT |
46℃±2℃ |
|
Temperature Co-efficient of Pmax |
-0.398%/℃ |
|
Temperature Co-efficient of Voc |
-0.340%/℃ |
|
Temperature Co-efficient of Isc |
0.0576%/℃ |
Mechanical Parameters
|
Cell size |
156.75*156.75mm |
156.75*156.75mm |
156.75*156.75mm |
156.75*156.75mm |
|
Cell amounts |
36(4*9) |
36(4*9) |
36(4*9) |
36(4*9) |
|
Weight |
5.2kg |
7.2kg |
7.2kg |
7.2kg |
|
Module Dimensions |
665*765*25mm |
665*1005*30mm |
665*1005*30mm |
665*1005*30mm |
|
Front Cover |
3.2mm tempered glass |
|||
|
Frame Material |
Anodized aluminium alloy |
|||
|
Junction Box |
IP65 rated |
|||
|
Output Cables |
/ |
2.5mm2, Length 700mm+MC4 |
2.5mm2, Length 700mm+MC4 |
2.5mm2, Length 700mm+MC4 |
Packing
|
Power |
90W |
100W |
110W |
125W |
||||
|
Packing |
20'GP |
40'HC |
20'GP |
40'HC |
20'GP |
40'HC |
20'GP |
40'HC |
|
Pieces/Carton |
7 |
7 |
35 |
35 |
35 |
35 |
35 |
35 |
|
Pieces/Container |
1470 |
3136 |
860 |
2310 |
860 |
2310 |
860 |
2310 |
