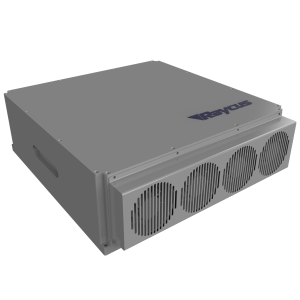

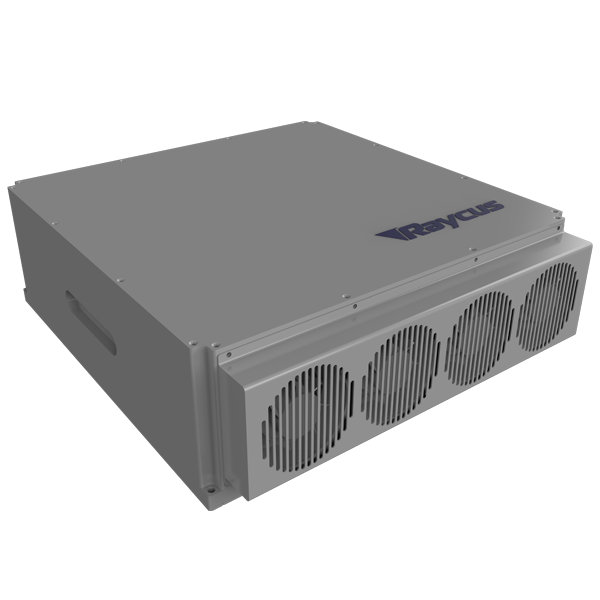

100W MOPA Fiber Laser
RFL-P100M
The brand-new short-pulse fiber laser launched by Raycus has a variety of pulse width options, including high average power (20-200W), high-peak power (≤15kW) and 2-500ns variety of pulse width, adjustable repetition frequencies of 1-2000kHz, available first pulse, cw mode Customizable, online modifiable pulse width and other characteristics. It is ideal for industrial applications in the field of solar photovoltaic, thin film cutting, sheet material cutting, welding, surface cleaning of materials, fine marking and material deepening, etc.
Customer service hotline: 027-81338818 to 8137
Online consultation +
Characteristics Of 100w fiber laser
Technical characteristics
Uniform Control Interface Wide Modulation Frequency Range Variety of Pulse width Customize Pulse Width Available first pulse High Beam Quality Air Cooling System
Optical Properties
Nominal output power: (W): 100Central wavelength: (nm): 1064Repetition frequency Range(kHz): 20-1000Output power stability: <5%</span>
Output characteristics
Output Beam Diameter(mm): 6.5±1M²: <1.6Polarization state: randomPulse Width Range(ns): 10-350(Customizable)Max.Single Pulse Energy(mJ): 1Delivery Cable length (m): 3(Customizable)</span>
Electronic control characteristics
Input power (V DC ): 24Power adjustment range (%): 0-100
Other characteristics
Dimensions (mm ): 360*123*390(handle included)Cooling method: Air-cooled Working temperature (℃ ): 0-40
Application Of 100W MOPA Fiber Laser RFL-P100M
Film Cutting Anodic Aluminum Etching Colorful Marking Precision Marking Precision Cleaning Surface Heat Texturing Treatment
We also have 20w raycus fiber laser source for sale , any needs, please contact us.
