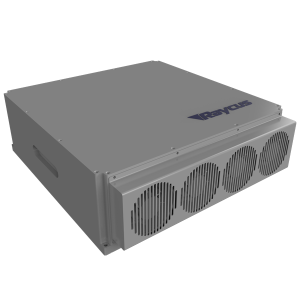

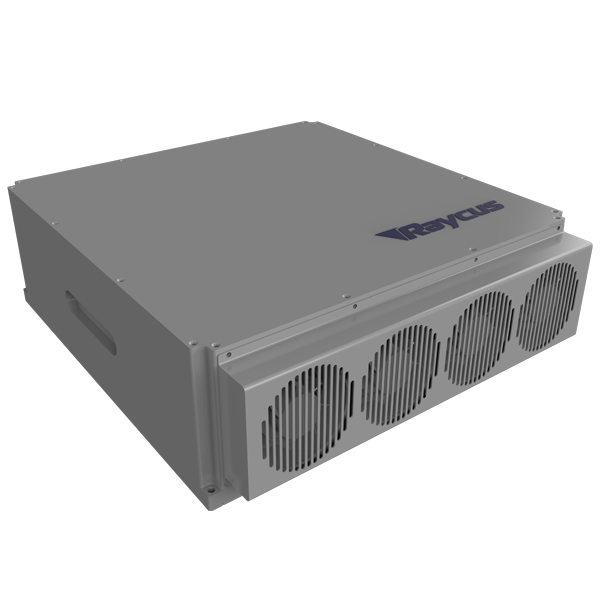

100W MOPA Fiber Laser

RFL-P100MX

The brand-new short-pulse fiber laser launched by Raycus has a variety of pulse width options, including high average power (20-200W), high-peak power (≤15kW) and 2-500ns variety of pulse width, adjustable repetition frequencies of 1-2000kHz, available first pulse, cw mode Customizable, online modifiable pulse width and other characteristics. It is ideal for industrial applications in the field of solar photovoltaic, thin film cutting, sheet material cutting, welding, surface cleaning of materials, fine marking and material deepening, etc.

Characteristics Of raycus fiber laser 100w

Technical characteristics

Uniform Control InterfaceWide Modulation Frequency RangeVariety of Pulse widthCustomize Pulse WidthAvailable first pulseHigh Beam QualityAir Cooling System

Optical Properties

Nominal output power: (W): 100Central wavelength: (nm): 1064Repetition frequency Range(kHz): 20-1000Output power stability: <5%</span>

Output characteristics

Output Beam Diameter(mm): 6.5±1M²: <1.6Polarization state: randomPulse Width Range(ns): 10-350(Customizable)Max.Single Pulse Energy(mJ): 1Delivery Cable length (m): 3(Customizable)</span>

Electronic control characteristics

Input power (V DC ): 24Power adjustment range (%): 0-100

Other characteristics

Dimensions (mm ): 350*120*320(handle included)Cooling method: Air-cooledWorking temperature (℃ ): 0-40

Application Of 100W Mopa Fibre Laser RFL-P100MX

Film CuttingAnodic Aluminum EtchingColorful MarkingPrecision MarkingPrecision CleaningSurface HeatTexturing Treatment
