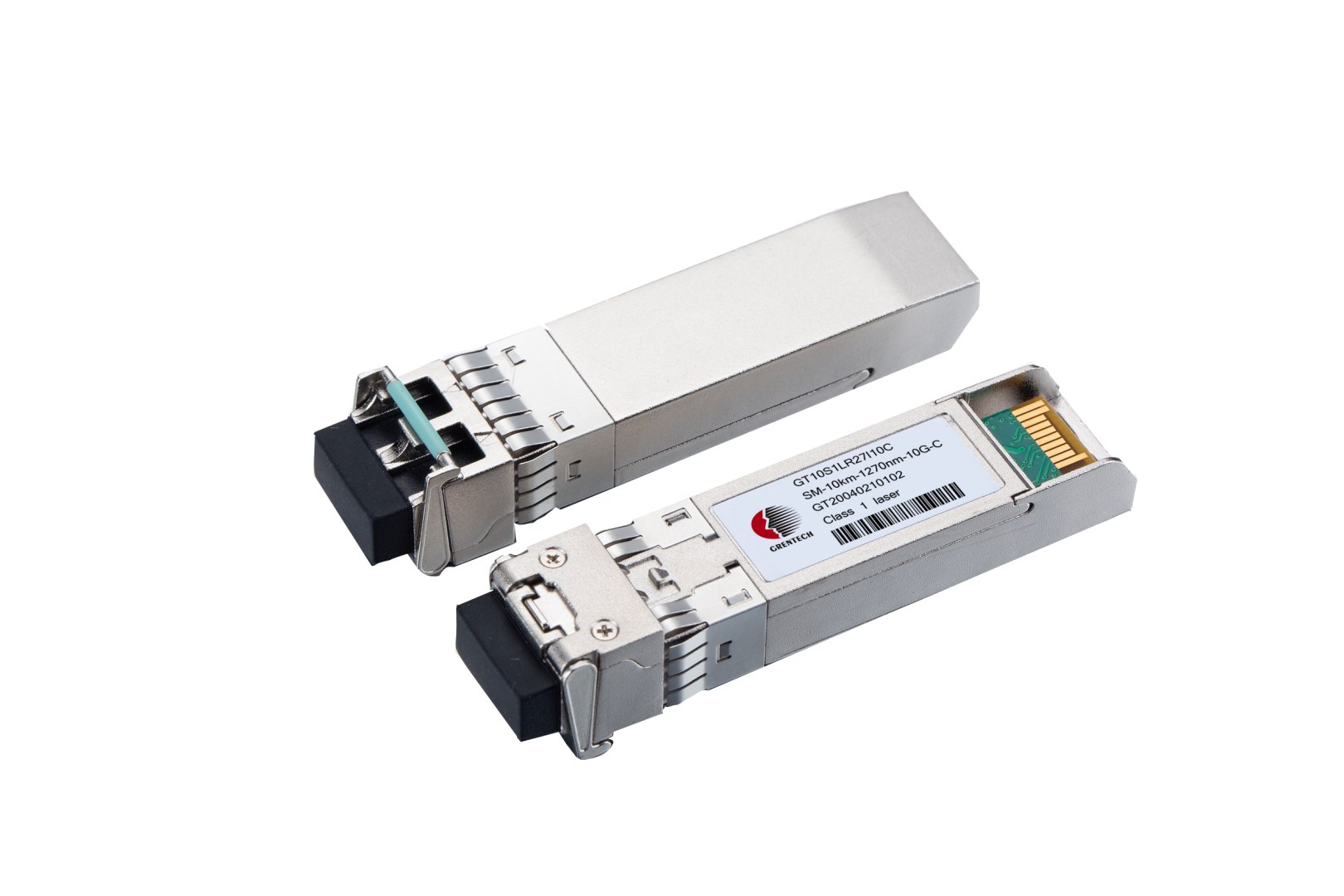

10G SFP+ CWDM
10G SFP+ CWDM
The 10g cwdm sfp+ transceiver adopts DFB laser without refrigeration CWDM at the TX terminal, the wavelength ranges from 1270nm to 1610nm, and it adopts PIN at the receiving end. The maximum power consumption is less than 2W, compliants IEEE 802.3AE and SFF-8431 standards. Applications: 10 gigabit Ethernet, CPRI, Fibre Channel, SONET/SDH, etc. Contact GrenTech for more 10g cwdm sfp+ info!
10G SFP+ CWDM Specification
|
Product Name |
10G SFP+ CWDM |
Vendor Name |
GrenTech |
|
Form Factor |
SFP+ |
Wavelength |
CWDM |
|
Max Data Rate |
10.3125Gbps |
Transmitter Distance |
10km/20km/40km/80km |
|
Cable Type |
SM |
Connector |
LC Duplex |
|
Transmitter |
DFB |
Receiver |
PIN |
|
DDM |
Supported |
Temperature Range |
0-70℃ |
|
Modulation Format |
NRZ |
FEC |
NO |
|
Power Consumption |
≤3.5W |
EMC |
Supported |
