10G SFP+ DWDM
10G SFP+ DWDM

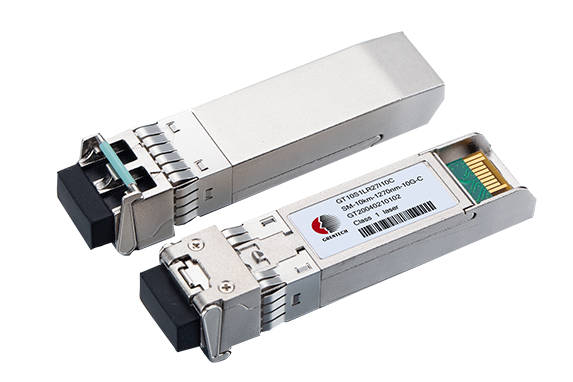

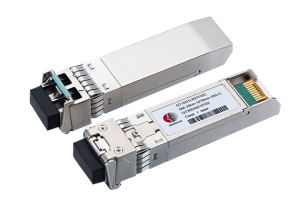

GrenTech 10g dwdm sfp+ uses a C-band fixed wavelength (100GHz or 50GHz) cooled EML laser, with a PIN (40km) or APD (80km) receiver. It supports 10GE and OTN OTU2e standards and is compatible with SONET/SDH and 10G Fiber Channel. Contact GrenTech for more 10g dwdm sfp+ transceivers.
10G SFP+ DWDM Specification
|
Product Name |
10G SFP+DWDM |
Vendor Name |
GrenTech |
|
Form Factor |
SFP + |
Wavelength |
DWDM |
|
Max Data Rate |
10.3125Gbps |
Transmitter Distance |
40km/80km |
|
Cable Type |
SM |
Connector |
Dual LC |
|
Transmitter |
DFB/EML |
Receiver |
PIN /APD |
|
DDM |
Supported |
Temperature Range |
0-70℃ |
|
Modulation Format |
NRZ |
FEC |
NO |
|
Power Consumption |
≤2W |
EMC |
Supported |
As one of communication equipment manufacturers, we have types of optical transceiver for sale, if you have needs, please contact us.
