10G X2 ZR

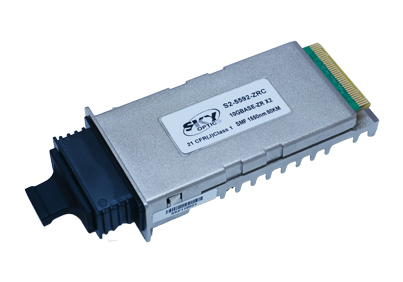

10G X2 ZRX2-10GBASE-ZR 1550nm, 80km Reach (PN: S2-5592-ZRC)Features ● Compatible with X2 MSA Rev2.0b ● Support of IEEE 802.3ae 10GBASE-ER at 10.3125Gbps ● Transmission Distance up to 80Km(SMF) ● SC Receptacle 1550nm Cooled EA-DFB Laser ● SC Duplex Optical Connector ● Hot Pluggable 70-PIN Connector with XAUI Electrical Interface ● Management and control via MDIO 2-wire interface ● Power Supply : +5V, +3.3V, APS(+1.2V) ● Diagnostic Optics Monitoring ● Temperature Range: 0~ 70 °C● ROHS CompatibleApplications ● 10GE Ethernet switches and routers ● 10GE Core-routers ● 10GE Storage ● Other 10Gbps Ethernet Transmission SystemTransmitter Specifications – OpticalParameter Symbol Min Typical Max Unit Center Wavelengthlcl530l565pmOptical Transmit PowerPo04dBmOptical Transmit Power (disabled)Ptx-dis---40dBmExtinction RatioER9-dBSide Mode Suppression RatioSMSR30--dBEye MaskIEEE 802.3ae CompliantTransmitter Specifications - Electrical Parameter Symbol Min Typical Max Unit Data Rate (TXLINE0-3)TX-xaui-3125-MbpsDifferential impedanceZo80100120ΩDifferential Input AmplitudeVin P-P160-2000mVppInput Rise/FallTR / TF60-130psDifferential Impedance of ZinZin-100-ohmReceiver Specifications - Optical Parameter Symbol Min Typical Max Unit Received powerRpo-24.0--7dBmMaximum Input PowerRX-overload-7--dBmInput Operating Wavelengthλ1260-1565nmDispersion toleranceDt0-1600ps/nmReceiver Specifications - Electrical Parameter Symbol Min Typical Max Unit Data Rate (TXLINE0-3)RX-xaui3125MbpsSupply VoltageVccRX3.133.33.47VDifferential Output AmplitudeVout P-P800-1600mVRise/Fall TimeTr / Tf50-90psDifferential Impedance of ZoutZout-100-ohmSignal Specifications - Electrical Parameter Symbol Min Typ Max Units 1.2 V CMOSInput High VoltageVIL(MAX)--0.36VInput Low VoltageVIH(MIN)0.84-1.25VCapacitance--320pFPull Up ResistanceRpull10k-22kohmMDIO I/OOutput Low VoltageVOL-0.3-0.2VOutput Low CurrentIOL--4mAInput High VoltageVIH0.84-1.5VInput Low VoltageVIL-0.3-0.36VPull-up Supply VoltageVPULL1.141.21.26Input CapacitanceCIN--10PfLoad CapacitanceCLOD--470PfExternal Pull-up ResistanceEPULL200--OhmOrdering information for 10G X2 ZR Part Number Product Description S2-5592-ZRCX2 1550nm 10.3125Gbps 80Km, 0ºC ~ +70ºC url: http://www.dwdmsfp.net
