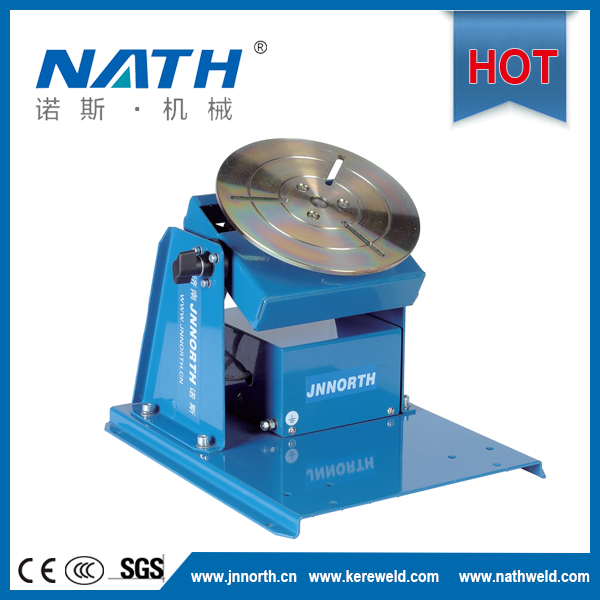

10kg light welding machine
Product Application
This small positioner is mainly used in laboratory.This welding positioner can be supplied for interfacing with robot or welding manipulators, to realize the welding automation.
Main Features
●Stepless adjustable speed.
●Precision and flexible structure,easy to operating & installing.
●Designed for the lightweight(10kg or less) workpiece's circular seam welding.
●Can configure a welding chuck to fix the workpiece.
●Can adopting the foot pedal to control the on/off of the positioner.
Specification
|
型号 MODEL |
BY-10 |
|
输入电源电压 Power Input |
AC 110V/220V 50/60Hz |
|
负载能力0°/90° Capacity(horizontal/vertical) |
10Kg/5Kg |
|
工作台直径 Table Dimension |
180mm |
|
工作台高度 Table Height |
220mm |
|
工作台转速 Rotation Speed |
2-10 rpm |
|
工作台翻转角度 Tilt Range |
0-90° |
|
工作台翻转方式 Tilt Mode |
手动翻转 Manual |
|
回转电机 Rotation Motor |
15W |
|
外形尺寸 Over Dimension |
370×270×215mm |
