12 months guatantee,metal engraving marking machine,DIY lable printer machine
automatic pneumatic marking machine,aluminum coding machine,label printer,flat & ARC/round/circle surface marking machine
automatic pneumatic marking machine,aluminum coding machine,
label printer,flat & ARC/round/circle surface marking machine
(Customer need prepare air pump and computer)
Remark:
- Upgrade based on QD01,and add function for “round products”
- Customer need prepare air pump and computer
- 160*110mm work area for customized, if need contact to us
- with round products clip
- standard machine in RED style, if need WHITE,pls CONTACT to US!
Specificaton:
Model |
QD02 |
Marking speed |
3-5 characters/s |
Hitting frequency |
300HZ |
Marking depth |
0.1-1mm(according to the workpiece material ) |
Marking accuracy |
0.02mm |
Marking scope |
120*90mm (customization any marking area )/360 degree |
Pinhead hardness |
HRA92 |
Workpiece hardness allowed |
≤HRC65 |
Inputting air pressure |
0.3-0.6MPA |
Power consumption |
≤200W |
Voltage |
AC220V±10%,50Hz,110V/60HZ |
Working Temperature |
0-40°C |
Relative humidity |
≤90% |
Feature:
Pneumatic Property
1, China's first high-speed data interface cards VSB2.0 data transfer faster and more stable .
2, imported linear guide, stepper motors, solenoid valves, wear-resistant, suitable for long er life.
3, the unique shape design, can be comparable to similar foreign machine.
4, the use of double-column linear bearing structure, no lateral gap, more accurate, more fr eedom
6, perfect drawing editor, needle and data checking
7, PLC interface aside, accept PC control, more suited to the modern factory system automati cally prints
8, the circuit is designed to meet international EMC testing standards, the system is more s table, higher precision marking
9, reserved for I / O interface, automatic clamping device can be installed in accordance wi th customer needs, improve efficiency
10, fully meet IS09001-9002 quality system certification of products can be identified, trac eability requirements.
11, you can import graphics, support software extensions.
Application:
Suitable for a variety of metal or non-metallic signs, marking parts of the plane, as w ell as radial cylindrical workpiece marking. Particularly suitable for a variety of brand-name signs marking, economical and convenient to use
Guarantee& Shipment
we supply 12months guarantee.
we will ship the machine in 4days.
we will ship it by DHL,FEDEX,UPS which takes only 4-6days for delivering.

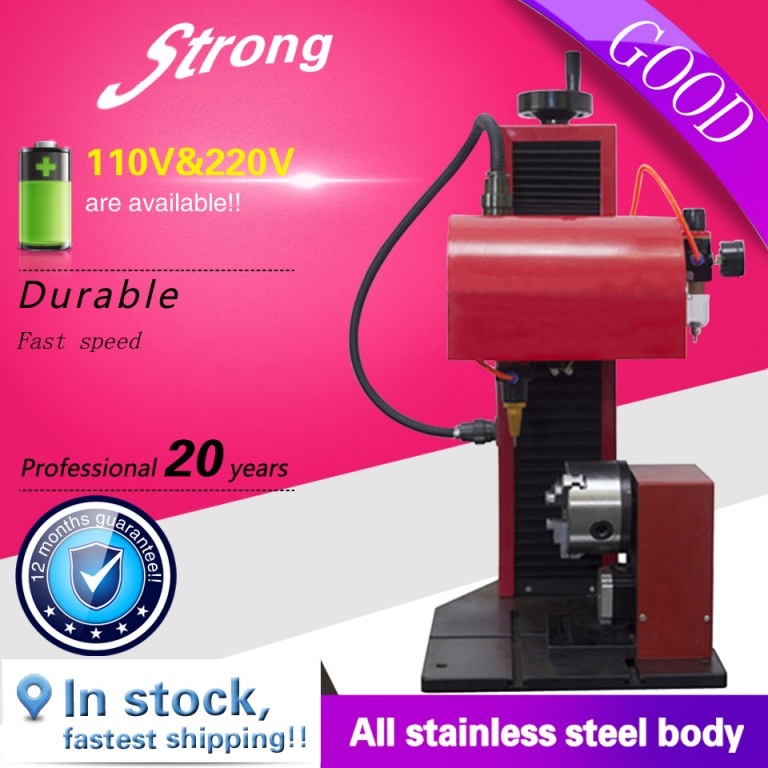

Product show:
