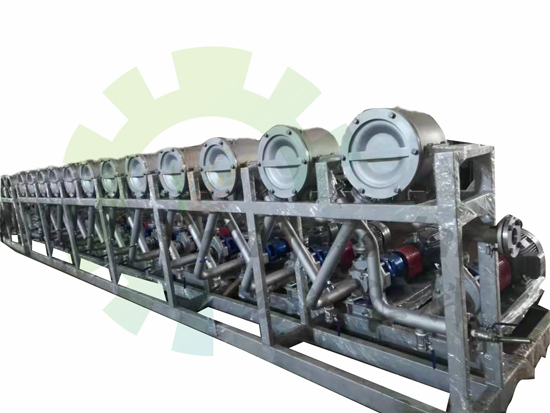

12-stage Hydrocyclone System
Quantité : 1-100 Prix : USD 50000-5000000
VD-HC-D series 12 stage starch washing hydrocyclone system is mainly used to extract refined starch milk, that is, to remove soluble and insoluble proteins and possible tiny fibers contained in starch milk.
Structure and principle: the cyclone separator consists of housing, orifice plate, cover, cyclone tube, plug tube, etc.
The working principle of hydrocyclone is as follows: The starch milk and the washing water go through the hydrocyclone system in a countercurrent way. The hydrocyclone system usually consists of 6 ~ 12 grades. Each stage contains a number of cyclone tubes which are housed in the housing of the cyclone separator and operate in parallel. Each stage of the rotary separator has a feeding interface, bottom flow interface, and overflow interface.
Starch washing cyclone, bottom flow contains concentrated starch milk, overflow contains soluble substances and fine slag. The bottom flow of one stage is sent to the feeding pump of the middle stage along with the overflow of the previous stage. The starch milk first enters the first stage of the washing system, then is washed step by step to reach the required refined starch milk and leaves the system through the bottom flow of the last stage.
The overflow contains dilute starch milk and impurities to be removed. This allows the washing water (which enters the washing system before the final stage) to leave the hydrocyclone system after passing through the stage 1 overflow, removing impurities such as proteins and fine fibrous residues.
HongVadar relies on professional design, strict production management, the fine processing procedure, provides high efficiency and energy-saving equipment system for the customer. Mentoring is a critical part of the Troubleshooter's role in hydrocyclone troubleshooting. Themanufacturing factory has passed the international ISO9001 quality system certification, and with the design and manufacturing capacity of pressure vessels. Mentoring is a critical part of the Troubleshooter's role in hydrocyclone troubleshooting. Customers can choose international ISO, EU CE, and other standards for equipment design and production according to their needs.
Features of 12 Stage Hydrocyclone System
Good washing and refinery effect.
Stable running and low failure rate.
Easy operation and convenient maintenance.
High production capacity.
12-stage Hydrocyclone System Technical Parameter
Model |
Type |
Output capacity |
Feed pres. |
HVD-HC-D200-1 |
Horizontal |
1~1.5 |
0.6-0.8 |
HVD-HC-D250-1 |
Horizontal |
1.5~2 |
0.6-0.8 |
HVD-HC-D300-1 |
Horizontal/vertical |
2.5 |
0.6-0.8 |
HVD-HC-D350-1 |
Horizontal/vertical |
3 |
0.6-0.8 |
HVD-HC-D410-1 |
Horizontal/vertical |
5 |
0.6-0.8 |
HVD-HC-D450-1 |
Horizontal/vertical |
6 |
0.6-0.8 |
HVD-HC-D350-2 |
Horizontal/vertical |
6 |
0.6-0.8 |
HVD-HC-D410-2 |
Horizontal/vertical |
10 |
0.6-0.8 |
HVD-HC-D450-2 |
Horizontal/vertical |
12 |
0.6-0.8 |
HVD-HC-D500-2 |
Vertical |
15 |
0.6-0.8 |
HVD-HC-D560-2 |
Vertical |
20 |
0.6-0.8 |
HVD-HC-D600-2 |
Vertical |
24 |
0.6-0.8 |
HVD-HC-D750-2 |
Vertical |
30 |
0.6-0.8 |
Beijing Hongvadar Engineering Technology Co. Is a professional hydrocyclone manufacturers, we provide sweet corn processing plant, continuous crystallization equipment and etc. For more info, contact us.
