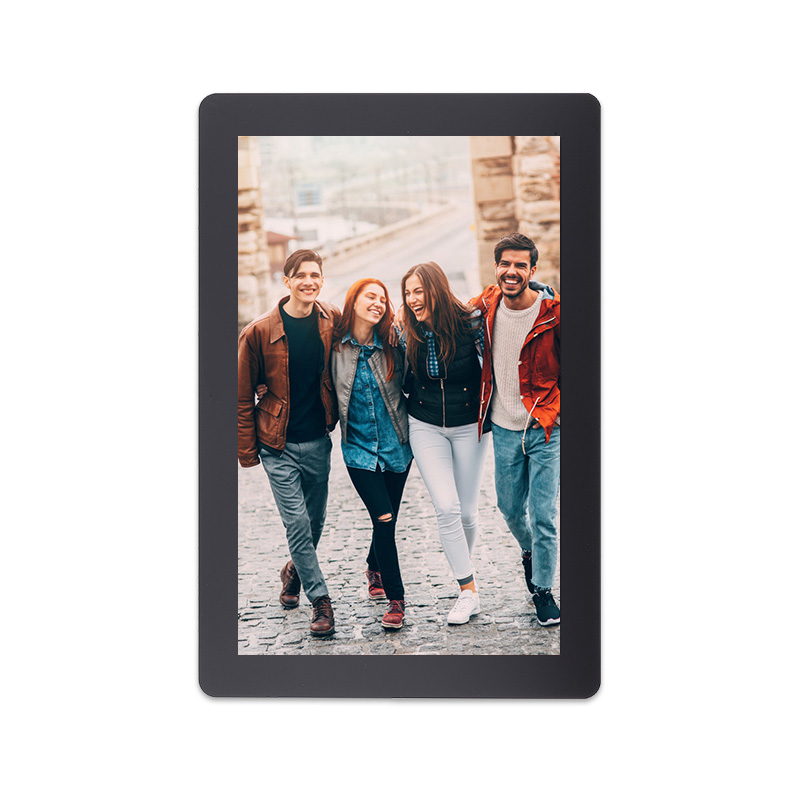

1200x1920 High Resolution 8 Inch Mipi IPS TFT Display
Kingtech is one of the leading LCD factory in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications, lcd display screen, industrial touch screen, outdoor lcd display, round lcd display and etc.
Kingtech 1200x1920 IPS All/free/wide viewing angle 8inch TFT display is one of our main products. The TFT LCD screen 8 inch has a special resolution of 1200x1920, most customers use it for logistics device. The 8inch IPS LCD screen has a capacitive touch and also can custom according to customer requirements.
Features of 1200x1920 High Resolution 8"touch screen Mipi IPS TFT Display
1200x1920 resolution /High resolution
All / Free / Wide viewing angle
IPS type
MIPI 4 lane interface
Portrait / vertical display
Support capacitive touch
Specification of 1200x1920 High Resolution 8 inch touch screen raspberry pi Mipi IPS TFT Display
|
Item |
8 inch 1200x1920 TFT module display |
|
Model No |
PV08004TD31C-C |
|
Resolution |
1200x1920 |
|
Outline Dimension |
114.60*184.12*2.2mm |
|
Active Area(mm) |
107.64(H) *172.224(V) |
|
Interface |
MIPI |
|
Viewing Angle |
All |
|
Display Mode |
IPS/Normally Black |
|
Operating Temperature |
-0℃～ +50℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Brightness |
500nits |
|
Touch panel |
Capacitive touch panel |
Application of 1200x1920 High Resolution 8'' Mipi IPS TFT Display
The 8inch 1200x1920 IPS TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, logistics device, and E-Bike.
