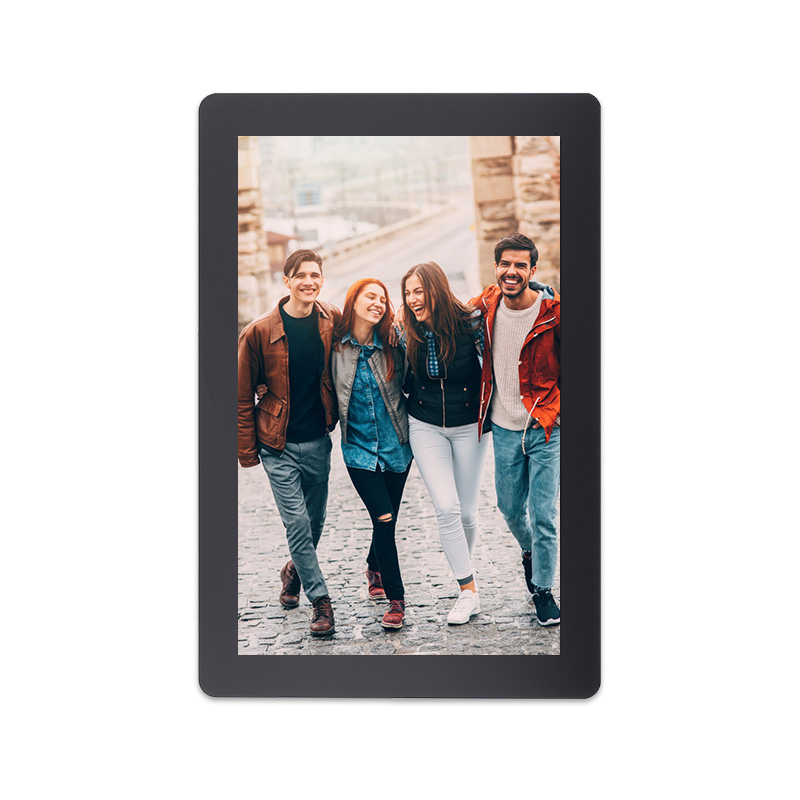

1200x1920 High Resolution 8 Inch Mipi IPS TFT Display
Quantité : 800,000pcs Prix : USD3-USD200
Kingtech 8 inches 1200x1920 ips tft panel All/free/wide viewing angle TFT LCD display is one of our main products.
The 8 tft lcd module has a special resolution of 1200x1920, most customers use it for logistics devices. The 8inch IPS LCD screen has a TFT capacitive touchscreen and also can custom according to customer requirements.
Kingtech Diaplay has achieved great progresses in the field of LCD production and promoises to provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
Features of 1200x1920 high resolution lcd display
1200x1920 resolution /High resolution
All / Free / Wide viewing angle
IPS type
MIPI 4 lane interface
Portrait / vertical display
Support capacitive touch
Specification of 1200x1920 High Resolution 8'' Mipi IPS TFT Display
|
Item |
8 inch 1200x1920 TFT module display |
|
Model No |
PV08004TD31C-C |
|
Resolution |
1200x1920 |
|
Outline Dimension |
114.60*184.12*2.2mm |
|
Active Area(mm) |
107.64(H) *172.224(V) |
|
Interface |
MIPI |
|
Viewing Angle |
All |
|
Display Mode |
IPS/Normally Black |
|
Operating Temperature |
-0℃～ +50℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Brightness |
500nits |
|
Touch panel |
Capacitive touch panel |
Application of 1200x1920 High Resolution 8'' Mipi IPS TFT Display
The 8inch 1200x1920 IPS TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, logistics device, and E-Bike.
For more information about lcd manufacturing and buy oem screen, please feel free to contact us!
